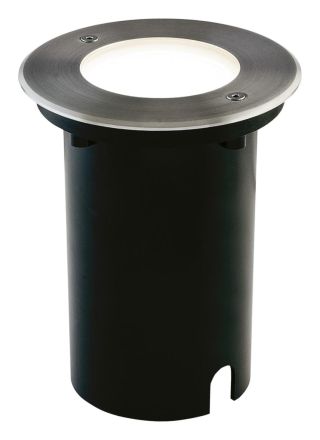

EVN PC670101140 IP67 100-240V 11W 4000K 880lm round EDS LED recessed floor spotlight

EVN PC670101140 IP67 100-240V 11W 4000K 880lm round EDS LED recessed floor spotlight

In stock

SKU: 811101

Price on request

€160.78

€0

Overview

The body of the recessed floor light is made of solid aluminum, the upper cover ring is made of V4A stainless steel and can be used for a wide range of outdoor applications. Installation is carried out using the plastic installation sleeve included in the delivery. The hole cutout specified refers to the upper part of the installation sleeve, which, after an offset of 20mm, is reduced to 88mm. Since the COB LED chip is permanently installed, there are no additional costs for lamps. There are also no additional costs for a ballast, since the connection is made directly to the 230V supply line. The maximum driving speed is 20km/h.

Property	Value
Nominal voltage:	100 to 240 V
With light source:	yes
With operating device:	yes
Installation diameter:	112 mm
Housing color:	stainless steel
Outer diameter:	125 mm
Light source:	LED not replaceable
Protection type (IP):	IP67
Protection class:	I
Electrical connection with Plug-in system:	no
Cover material:	transparent glass
Adjustable:	no
Light distribution:	symmetrical
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	880 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	1000 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Beam angle:	wide beam 41-80°
Max. System power:	11 W
Height/depth:	157 mm
Installation height/depth:	154 mm
Number of poles:	3
Conductor cross-section:	1 mm²
Housing material:	Aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABIP67 100-240V 11W 4000K 880lm round EDS

Manufacturer

HANPC670101140

GTIN4037293018210

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter125 mm

Rated luminous flux according to IEC 62722-2-1880lm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter112 mm

Installation height/depth154 mm

Electrical connection with plug-in systemNo

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Housing colorStainless steel

Height/Depth157 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section1 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Max. load1000 kg

Max. system performance11 W

With operating deviceYes

With light sourceYes

Nominal voltage100 to 240 V

Without dimming functionYes

Number of poles3

IP protection)IP67

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum

RolloverYes
