EVN PC67101240 IP67 110-240V 12W 4000K 1047lm round EDS LED recessed floor spotlight LB20

EVN PC67101240 IP67 110-240V 12W 4000K 1047lm round EDS LED recessed floor spotlight LB20

In stock

SKU: 811109

Price on request

€191.99

€0

Overview

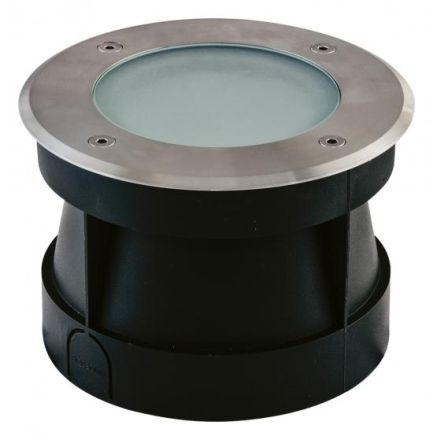

The body of the recessed floor light is made of solid aluminum, the upper cover ring is made of V2A stainless steel and can be used for a variety of outdoor applications. Installation is carried out using the plastic installation sleeve included in the delivery. Since the COB LED chip is permanently installed, there are no additional costs for lamps. There are also no additional costs for a ballast, as the connection is made directly to the 230V supply line. There is also a self-venting valve on the underside. The maximum driving speed is 20 km/h. The glass cover is optionally available in clear (PC6710888), which increases the light output to 1144lm.

Property	Value
Nominal voltage:	110 to 240 V
With light source:	yes
With operating device:	yes
Installation diameter:	165 mm
Housing color:	stainless steel
Outer diameter:	180 mm
Light source:	LED not replaceable
Protection type (IP):	IP67
Protection class:	I
Electrical connection with Plug-in system:	no
Cover material:	matt/satin glass
Adjustable:	no
Light distribution:	symmetrical
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	1047 lm
Color temperature:	4000 K
Light color:	white
Max. load:	1500 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Beam angle:	wide beam 41-80°
Max. System power:	12 W
Height/depth:	125 mm
Installation height/depth:	120 mm
Number of poles:	3
Conductor cross-section:	0.75 mm²
Housing material:	Aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABIP67 110-240V 12W 4000K 1047lm round EDS

Manufacturer

HANPC67101240

GTIN4037293019880

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter180 mm

Rated luminous flux according to IEC 62722-2-11047lm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter165 mm

Installation height/depth120 mm

Electrical connection with plug-in systemNo

Color temperature4000K

Color temperature adjustableNo

Housing colorStainless steel

Height/Depth125 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Max. load1500 kg

Max. system performance12W

With operating deviceYes

With light sourceYes

Nominal voltage110 to 240 V

Without dimming functionYes

Number of poles3

IP protection)IP67

Protection classI

Voltage typeAC

Cover materialMatt/satin glass

Housing materialAluminum

RolloverYes
