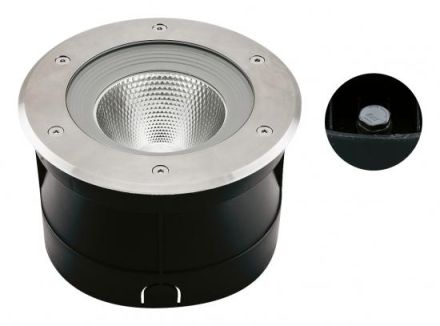

EVN PC67102402 stainless steel 24W 1465lm 3000K LED recessed floor spotlight LB20

EVN PC67102402 stainless steel 24W 1465lm 3000K LED recessed floor spotlight LB20

In stock

SKU: 810810

Price on request

€272.48

€0

Overview

The body of the recessed floor light is made of solid aluminum, the upper cover ring is made of V2A stainless steel and can be used for a variety of outdoor applications. Installation is carried out using the plastic installation sleeve included in the delivery. Since the COB LED chip is permanently installed, there are no additional costs for lamps. There are also no additional costs for a ballast, as the connection is made directly to the 230V supply line. The maximum driving speed is 20 km/h. A matt glass and an anti-glare protection are optionally available for the light.

Property	Value
Nominal voltage:	110 to 240 V
With light source:	yes
With operating device:	yes
Installation diameter:	205 mm
Housing color:	stainless steel
Outer diameter:	220 mm
Light source:	LED not replaceable
Protection type (IP):	IP67
Protection class:	I
Electrical connection with Plug-in system:	no
Cover material:	transparent glass
Adjustable:	no
Light distribution:	symmetrical
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	1636 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	1500 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Beam angle:	medium beam 21-40°
Max. System power:	24 W
Height/depth:	135 mm
Installation height/depth:	130 mm
Number of poles:	3
Conductor cross-section:	0.75 mm²
Housing material:	Aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Beam angle adjustable:	no
Max. surface temperature:	48 °C
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABStainless steel 24W 1465lm 3000K

Manufacturer

HANPC67102402

GTIN4037293006682

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter220 mm

Rated luminous flux according to IEC 62722-2-11636lm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter205 mm

Installation height/depth130 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Housing colorStainless steel

Height/Depth135 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Max. load1500 kg

Max. system performance24W

With operating deviceYes

With light sourceYes

Nominal voltage110 to 240 V

Without dimming functionYes

Number of poles3

IP protection)IP67

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum

RolloverYes
