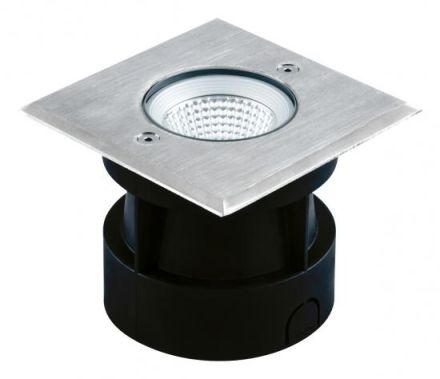

EVN PC67103402N IP67 100-240V 3W 3000K 235lm quad. EDS LED recessed floor spotlight

EVN PC67103402N IP67 100-240V 3W 3000K 235lm quad. EDS LED recessed floor spotlight

In stock

SKU: 811104

Price on request

€115.48

€0

Overview

The body of the recessed floor light is made of solid aluminum, the upper cover is made of V2A stainless steel and can be used for a wide range of outdoor applications. Installation is carried out using the plastic installation sleeve included in the delivery. Since the COB LED chip is permanently installed, there are no additional costs for lamps. There are also no additional costs for a ballast, since the connection is made directly to the 230V supply line. The maximum driving speed is 20 km/h. The light has a beam angle of 60°.

Property	Value
Nominal voltage:	100 to 240 V
With light source:	yes
With operating device:	no
Installation diameter:	100 mm
Housing color:	stainless steel
Operating device:	not required
Light source:	LED not replaceable
Length:	120 mm
Protection class (IP):	IP67
Protection class:	I
Electrical connection with plug-in system:	no
Cover material:	transparent glass
Adjustable:	no
Light distribution:	symmetrical
Width:	120 mm
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	235 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	1500 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Beam angle:	wide beam 41-80°
Max. System power:	3 W
Height/depth:	94 mm
Installation height/depth:	90 mm
Number of poles:	3
Conductor cross-section:	75 mm²
Housing material:	Aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Beam angle adjustable:	no
Max. surface temperature:	45 °C
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABIP67 100-240V 3W 3000K 235lm quad. EDS

Manufacturer

HANPC67103402N

GTIN4037293019927

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceNo

Rated luminous flux according to IEC 62722-2-1235lm

Operating deviceNot required

Width120 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter100 mm

Installation height/depth90 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Housing colorStainless steel

Height/Depth94 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section75 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Length120 mm

Max. load1500 kg

Max. system performance3W

With operating deviceNo

With light sourceYes

Nominal voltage100 to 240 V

Without dimming functionYes

Number of poles3

IP protection)IP67

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum

RolloverYes
