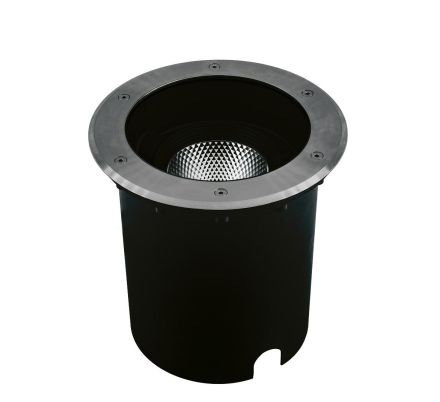

EVN PC67103640 PentolaXL IP67 110-240V 36W 4000K 2610lm LED recessed floor light

EVN PC67103640 PentolaXL IP67 110-240V 36W 4000K 2610lm LED recessed floor light

In stock

SKU: 811465

Price on request

€488.08

€0

Overview

The body of the recessed floor light is made of solid aluminum, the upper cover ring is made of V2A stainless steel and can be used for a wide range of outdoor applications. Installation is carried out using the plastic installation sleeve included in the delivery. The desired swivel angle is set using an adjusting screw on the underside of the light, so the light itself does not have to be opened. In addition, there are no additional costs for a ballast, as the connection is made directly to the 230V supply line. To avoid condensation, there is a self-venting vent valve on the underside of the light. The maximum driving speed is 20 km/h. The light has a beam angle of 23°. The swivel angle is 25°.

Property	Value
Nominal voltage:	110 to 240 V
With light source:	yes
With operating device:	yes
Installation diameter:	243 mm
Housing color:	stainless steel
Outer diameter:	260 mm
Light source:	LED not replaceable
Protection type (IP):	IP67
Protection class:	I
Electrical connection with Plug-in system:	no
Cover material:	transparent glass
Adjustable:	yes
Light distribution:	symmetrical
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	3200 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	1500 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Beam angle:	medium beam 21-40°
Max. System power:	36 W
Height/depth:	227 mm
Installation height/depth:	260 mm
Number of poles:	3
Conductor cross-section:	1 mm²
Housing material:	Aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Beam angle adjustable:	no
Max. surface temperature:	45 °C
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABPentolaXL IP67 110-240V 36W 4000K 2610lm

Manufacturer

HANPC67103640

GTIN4037293023962

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter260 mm

Rated luminous flux according to IEC 62722-2-13200lm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter243 mm

Installation height/depth260 mm

Electrical connection with plug-in systemNo

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Housing colorStainless steel

Height/Depth227 mm

IFTTT support availableNo

AdjustableYes

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section1 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Max. load1500 kg

Max. system performance36W

With operating deviceYes

With light sourceYes

Nominal voltage110 to 240 V

Without dimming functionNo

Number of poles3

IP protection)IP67

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum

RolloverYes
