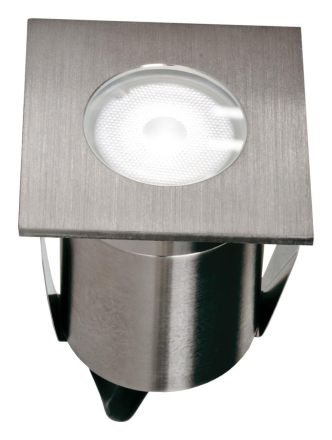

EVN 654110 stainless steel rigid square 230V 1.2W white LED recessed light

EVN 654110 stainless steel rigid square 230V 1.2W white LED recessed light

In stock

SKU: 810166

Price on request

€115.48

€0

Overview

The LED floor recessed light is made entirely of V4A stainless steel and can be used for a wide range of applications both indoors and outdoors. The aluminum installation sleeve included in the scope of delivery can be used optionally for installation, whereby the installation depth remains unchanged, the hole cutout changes to 59mm. Since the LED chip is permanently installed, there are no additional costs for lamps. There are also no additional costs for a ballast, as the connection is made directly to the 230V supply line. The maximum driving speed is 20 km/h.

Property	Value
Nominal voltage:	220 to 240 V
With light source:	yes
With control gear:	yes
Installation diameter:	55 mm
Housing color:	stainless steel
Control gear:	LED control gear current-controlled
Light source:	LED not replaceable
Length:	63 mm
Protection class (IP):	IP65
Protection class:	I
Electrical connection with plug-in system:	no
Cover material:	structured glass
Adjustable:	no
Light distribution:	symmetrical
Width:	63 mm
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	90 lm
Color temperature:	6000 K
Light color:	white
Max. load:	1000 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Beam angle:	wide beam 41-80°
Max. System power:	2 W
Height/depth:	73 mm
Installation height/depth:	80 mm
Number of poles:	3
Conductor cross-section:	0.75 mm²
Connection type:	other
Housing material:	stainless steel
Housing material quality:	other
Replaceable operating device:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Material quality of the housingOther

HABStainless steel rigid square 230V 1,2W we

Manufacturer

HAN654110

GTIN4037293654104

Connection typeOther

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceNo

Rated luminous flux according to IEC 62722-2-190lm

Operating deviceLED control gear current controlled

Width63 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter55 mm

Installation height/depth80 mm

Electrical connection with plug-in systemNo

Color temperature6000K

Color temperature adjustableNo

Housing colorStainless steel

Height/Depth73 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributionSymmetrical

Length63 mm

Max. load1000 kg

Max. system performance2W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

IP protection)IP65

Protection classI

Voltage typeAC

Cover materialGlass structured

Housing materialStainless steel

RolloverYes
