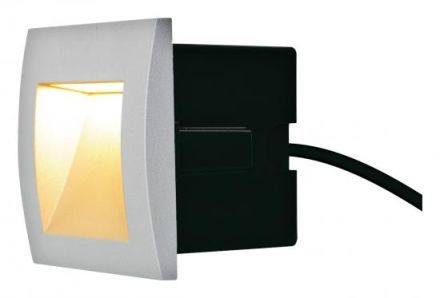

EVN 9150102 with 15LED IP65 230V 1W warm white LED recessed wall light

EVN 9150102 with 15LED IP65 230V 1W warm white LED recessed wall light

In stock

SKU: 809942

Price on request

€47.07

€0

Overview

Recessed wall light for a wide range of indoor and outdoor applications. To avoid glare, the light is provided with a matt cover. The indirect light emission illuminates the part of the light housing that runs diagonally downwards, from which the light is ultimately reflected. The light is perfect for orientation lighting around the house, in the stairwell or staircase and much more. Since the ballast is integrated into the light, no additional space is required for installation and no additional costs are incurred for external power supplies. The light is supplied including a mounting pot.

Property	Value
System power:	1 W
Luminous flux:	90 lm
Length:	90 mm
Width:	90 mm
Height/depth:	50 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	230 V
Housing color:	gray
Housing material:	aluminum
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Connection type:	screw terminal
With Operating device:	yes
Installation height/depth:	58 mm
Without dimming function:	yes
Installation width:	82 mm
Light emission:	indirect
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for Light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	74 mm
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminaire luminous efficacy:	90 lm/W
Number of poles:	3
Surface protection housing:	powder-coated
Replaceable operating device:	no
Dimming DALI-2:	no
Emergency power supply integrated:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABWith 15LED IP65 230V 1W warm white

Manufacturer

HAN9150102

GTIN4037293012553

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width90 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width82 mm

Installation height/depth58 mm

Installation length74 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorGray

Height/Depth50 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy90lm/W

LampsLED not replaceable

Light emissionIndirect

Light colorWhite

Luminous flux90lm

Luminous flux adjustableNo

Length90 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionYes

Number of poles3

IP protection)IP65

Protection classI

Voltage typeAC

System performance1W

Housing materialAluminum
