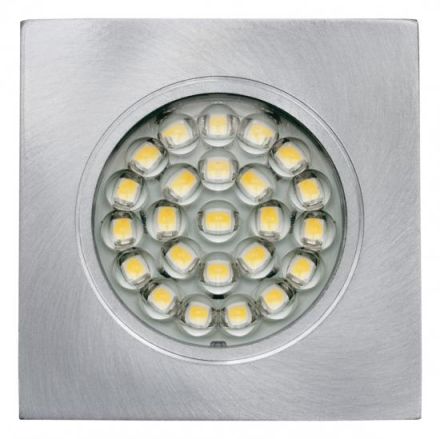

EVN L122402 square 12V DC 24 SMD LED 2.0W warm white LED furniture recessed light

EVN L122402 square 12V DC 24 SMD LED 2.0W warm white LED furniture recessed light

In stock

SKU: 809972

HAB:Square 12V DC 24 SMD LED 2.0W warm white

Manufacturer:EVN

HAN:L122402

GTIN:4037293364096

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€33.56

€0

Into a basketIn the basketGo

Overview

Recessed ceiling light for a wide range of indoor applications. Both effect lighting, accent lighting and much more can be implemented with this light. Thanks to the MM marking, the light can also be used in furniture construction. Several lights can be operated via one control device, which means that different light groups can be switched within a room. The light has a 1.5 m long connecting cable.

Property	Value
System power:	2 W
Housing color:	Aluminium
Housing material:	Aluminium
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	12 mm
With operating device:	no
Suitable for Recessed mounting:	yes
Length:	65 mm
Width:	65 mm
Height/depth:	11.5 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	12 V
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device voltage controlled
Beam angle:	extremely wide beam>80°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Luminous flux:	60 lm
Cover material:	transparent plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	other
surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light emission:	direct
Luminous intensity:	33 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	30 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	55 mm
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABSquare 12V DC 24 SMD LED 2.0W warm white

Manufacturer

HANL122402

GTIN4037293364096

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Width65 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter55 mm

Installation height/depth12 mm

Color temperature3000K

Color temperature adjustableNo

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorAluminum

Height/Depth11.5 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy30lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux60lm

Light intensity33 cd

Light distributionSymmetrical

Length65 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage12V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionOther

Without dimming functionNo

Number of poles2

ReflectorWithout

IP protection)IP20

Protection classIII

Voltage typeDC

System performance2W

AdjustabilityNot adjustable

Cover materialPlastic transparent

Housing materialAluminum
