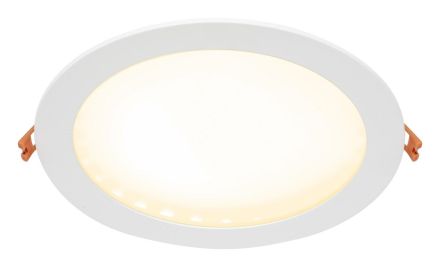

EVN LPRW223502 round 21W 350mA white IP20 warm white LED recessed light

EVN LPRW223502 round 21W 350mA white IP20 warm white LED recessed light

In stock

SKU: 810145

HAB:Round 21W 350mA white IP20 warm white

Manufacturer:EVN

HAN:LPRW223502

GTIN:4037293017336

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€75.53

€0

Into a basketIn the basketGo

Overview

LED built-in panel for various applications, such as full-surface, but also effective lighting in hallways, living rooms, offices, and much more. The panel is only suitable for indoor use. Since it has the MM marking, the panel can also be used in furniture construction. Due to the low installation depth, the panel can also be used in suspended ceilings with simple paneling, for example, but also in walls without any problems. The large-area light emission always ensures very homogeneous illumination of the room.

Property	Value
System power:	21 W
Luminous flux:	1736 lm
Height/depth:	25 mm
Protection rating (IP):	IP20
Protection class:	III
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	225 mm
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	-10 to 50 °C
Connection type:	other
With control gear:	no
Cover material:	plastic opal
Installation height/depth:	25 mm
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	LED control gear current-controlled
Suitable for Recessed installation:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation diameter:	205 mm
Design of the grid:	without
Cover of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	82 lm/W
Number of poles:	2
Surface protection housing:	powder-coated
Nominal current:	350 mA
Replaceable operating device:	no
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Luminous intensity:	553 cd
Adjustable color temperature:	no
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABRound 21W 350mA white IP20 warm white

Manufacturer

HANLPRW223502

GTIN4037293017336

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter225 mm

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter205 mm

Installation height/depth25 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth25 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy82lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1736 lm

Light intensity553 cd

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Rated current350mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classIII

System performance21 W

Temperature-10 to 50 °C

Cover materialPlastic opal

Housing materialAluminum
