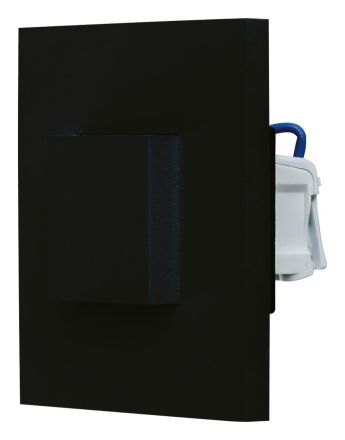

EVN LQ41802AD IP44 220-240V 1.8W 3000K 2-f anthracite LED recessed wall light LB20

EVN LQ41802AD IP44 220-240V 1.8W 3000K 2-f anthracite LED recessed wall light LB20

In stock

SKU: 811349

HAB:IP44 220-240V 1.8W 3000K 2-f anthracite

Manufacturer:EVN

HAN:LQ41802AD

GTIN:4037293022392

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€77.58

€0

Into a basketIn the basketGo

Overview

The LED recessed wall light is designed so that it can either be attached directly to the wall with two screws or optionally mounted in switch boxes. The screws are covered by the magnetically removable stainless steel frame. Due to its design and performance, the light is perfect as an orientation light. Thanks to the MM marking, the light can also be used in furniture construction. Since the light is connected directly to the high-voltage supply line, there are no additional costs for power supplies. Thanks to the seal attached to the back, the light achieves protection class IP44 when installed, housing color similar to RAL7016.

Property	Value
System power:	1.8 W
Length:	76 mm
Width:	76 mm
Height/depth:	48 mm
Protection rating (IP):	IP44
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Housing material:	stainless steel
Color temperature:	3000 K
Impact resistance:	IK08
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Connection type:	Plug terminal
With Operating device:	no
Cover material:	opal plastic
Installation height/depth:	35 mm
Without dimming function:	yes
Light emission:	indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation diameter:	55 mm
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Type of wiring:	suitable for through wiring
Number of poles:	2
Surface protection housing:	powder-coated
Replaceable Operating device:	no
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABIP44 220-240V 1.8W 3000K 2-f anthracite

Manufacturer

HANLQ41802AD

GTIN4037293022392

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width76 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter55 mm

Installation height/depth35 mm

Color temperature3000K

Color temperature adjustableNo

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorAnthracite

Height/Depth48 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light emissionIndirect

Light colorWhite

Luminous flux adjustableNo

Light distributionSymmetrical

Length76 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionYes

Number of poles2

Impact resistanceIK08

IP protection)IP44

Protection classII

Voltage typeAC

System performance1.8W

Cover materialPlastic opal

Housing materialStainless steel
