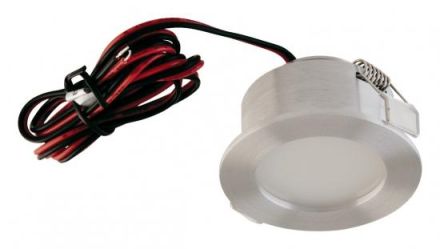

EVN P220302 alu rigid 3W 700mA warm white LED recessed light

EVN P220302 alu rigid 3W 700mA warm white LED recessed light

In stock

SKU: 809904

Price on request

€33.25

€0

Overview

LED recessed ceiling light for a wide range of indoor applications. Both effect lighting, accent lighting and much more can be implemented with this light. Thanks to the MM marking, the light can also be used in furniture construction. Several lights can be operated via one control device, which means that different light groups can be switched within a room. Since the light is operated via constant current, several lights must be connected in series. The connecting cable is 1m long.

Property	Value
System power:	2.5 W
Housing color:	Aluminium
Housing material:	Aluminium
Protection class (IP):	IP20
Outer diameter:	54 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	30 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	32 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	extreme wide beam>80°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	other
Luminous flux:	100 lm
Cover material:	opal glass
Covering of the luminaire with thermal insulation material possible:	no
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	untreated
Brushed surface:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 50 °C
Luminous intensity:	32 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	40 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Beam angle adjustable:	no
Installation diameter:	46 mm
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABAlu rigid 3W 700mA warm white

Manufacturer

HANP220302

GTIN4037293369206

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter54 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 50 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter46 mm

Installation height/depth30 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorAluminum

Height/Depth32 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy40lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux100lm

Light intensity32 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Emergency power supply integratedNo

Brushed surfaceYes

Surface protectionUntreated

Without dimming functionNo

Number of poles2

ReflectorOther

IP protection)IP20

Protection classIII

System performance2.5W

AdjustabilityNot adjustable

Cover materialGlass opal

Housing materialAluminum
