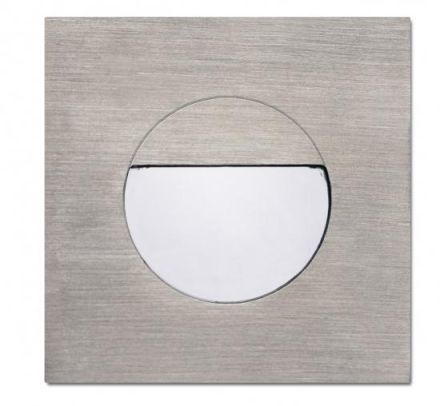

EVN P444101 square 1.2W 350 mA dl LED recessed light

EVN P444101 square 1.2W 350 mA dl LED recessed light

In stock

SKU: 809899

HAB:Square 1.2W 350 mA dl

Manufacturer:EVN

HAN:P444101

GTIN:4037293374590

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€63.89

€0

Into a basketIn the basketGo

Overview

The LED recessed light is designed so that it can be mounted either in the wall or optionally in switch boxes. Due to its design and performance, the light is perfect as an orientation light. Since the light is operated via 350mA, the lights must be connected in series. The light has a 2m long connection cable.

Property	Value
System power:	1 W
Luminous flux:	24 lm
Length:	80 mm
Width:	80 mm
Height/depth:	40 mm
Protection rating (IP):	IP44
Protection class:	III
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Housing color:	stainless steel
Housing material:	stainless steel
Color temperature:	6000 K
Suitable for ceiling mounting:	no
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
Connection type:	other
With Operating device:	no
Cover material:	opal glass
Installation height/depth:	38 mm
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation diameter:	60 mm
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming Phase control:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Luminous efficacy:	24 lm/W
Number of poles:	2
Nominal current:	350 mA
Replaceable Operating device:	no
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABSquare 1.2W 350 mA dl

Manufacturer

HANP444101

GTIN4037293374590

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width80 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter60 mm

Installation height/depth38 mm

Color temperature6000K

Color temperature adjustableNo

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorStainless steel

Height/Depth40 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy24lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux24lm

Light distributionSymmetrical

Length80 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Rated current350mA

Emergency power supply integratedNo

Without dimming functionNo

Number of poles2

IP protection)IP44

Protection classIII

System performance1W

Cover materialGlass opal

Housing materialStainless steel
