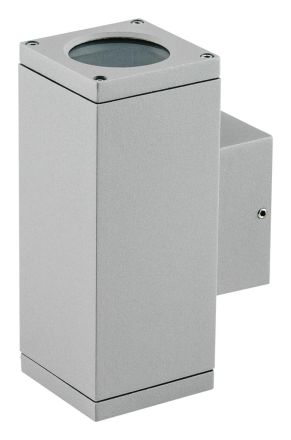

EVN 485015N quad. IP54 GU10 Alu 2-flam. max. 2x 11W wall light

EVN 485015N quad. IP54 GU10 Alu 2-flam. max. 2x 11W wall light

In stock

SKU: 810673

Price on request

€67.46

€0

Overview

Solid aluminum wall light for outdoor use. Of course, the light can also be used indoors. There are almost no limits to the choice of light source due to the high-voltage sockets, but only light sources up to a maximum of 11W may be used. Base dimensions: 55mm x 70mm x 33mm, the specified depth is measured including the base.

Property	Value
Number of LM:	2
Length:	155 mm
Width:	63 mm
Height/Depth:	96 mm
Protection rating (IP):	IP54
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	aluminum
Impact resistance:	IK03
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	no
Socket:	GU10
Connection type:	screw terminal
With operating device:	no
Cover material:	glass transparent
Without dimming function:	no
Light emission:	direct
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for Emergency light:	no
Covering of the light with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
DALI dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Leading edge dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Dimming with Push button:	no
Suitable for lamp power:	0.1 to 11 W
Number of poles:	3
Surface protection housing:	powder-coated
Replaceable operating device:	no
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM2

HABQuad. IP54 GU10 aluminum 2-flam. max. 2x 11W

Manufacturer

HAN485015N

GTIN4037293003186

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width63 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionGU10

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power0.1 to 11W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorGray

Height/Depth96 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Light emissionDirect

Length155 mm

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Number of poles3

Impact resistanceIK03

IP protection)IP54

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum

EVN 485015N quad. IP54 GU10 Alu 2-flam. max. 2x 11W wall light

Price on request

€67.46

€0
