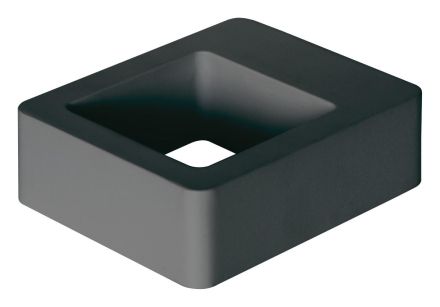

EVN C54150502 alu quad. dark grey IP54 5W 230V LED wall light

EVN C54150502 alu quad. dark grey IP54 5W 230V LED wall light

In stock

SKU: 810442

Price on request

€89.36

€0

Overview

The LED wall light is made of die-cast aluminum and is suitable for a wide range of indoor applications. Thanks to the protection class, the light can also be used in damp rooms. The unusual design makes the light an eye-catcher in any room. The light emission directed towards the wall, combined with the light output, ensures functional and at the same time stylish lighting without glare. The ballast is integrated in the rear part of the light.

Property	Value
System power:	5 W
Luminous flux:	450 lm
Length:	145 mm
Width:	120 mm
Height/depth:	46 mm
Protection rating (IP):	IP54
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	100 to 240 V
Housing colour:	anthracite
Housing material:	aluminium
Colour temperature:	3000 K
Impact resistance:	IK03
Colour rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With Light source:	yes
Light source:	LED not replaceable
Connection type:	screw terminal
With control gear:	yes
Cover material:	transparent glass
Without dimming function:	yes
Light emission:	indirect
With light sensor:	no
Control gear:	LED control gear current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	90 lm/W
Number of poles:	3
Surface protection housing:	powder-coated
Nominal current:	350 mA
Replaceable Operating device:	yes
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABAlu quad. dark grey IP54 5W 230V

Manufacturer

HANC54150502

GTIN4037293014434

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width120 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorAnthracite

Height/Depth46 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy90lm/W

LampsLED not replaceable

Light emissionIndirect

Light colorWhite

Luminous flux450lm

Length145 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage100 to 240 V

Rated current350mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionYes

Number of poles3

Impact resistanceIK03

IP protection)IP54

Protection classI

Voltage typeAC

System performance5W

Cover materialGlass transparent

Housing materialAluminum
