EVN L124250102 12V/DC 2.5W 3000K 100lm quad. white LED wall light

EVN L124250102 12V/DC 2.5W 3000K 100lm quad. white LED wall light

In stock

SKU: 811356

Price on request

€25.99

€0

Overview

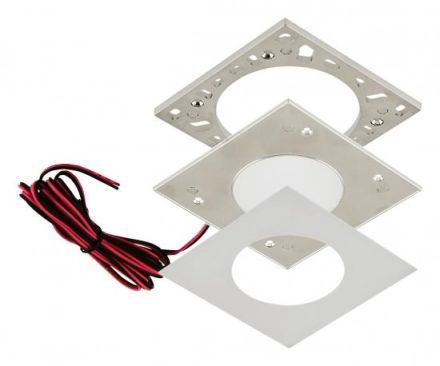

The recessed and surface-mounted light is perfect for furniture construction due to its flat design, but can of course also be used as a ceiling light. The two screw holes for fastening are covered by the metal cover in stainless steel design, which in turn is magnetically attached to the light. For use as a recessed light, the mounting frame, which is also magnetically attached to the back, can be easily removed. The light has a 2m long connecting cable with free wire ends.

Property	Value
System power:	2.5 W
Luminous flux:	100 lm
Length:	75 mm
Width:	75 mm
Height/depth:	6 mm
Protection rating (IP):	IP20
Protection class:	III
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	12 V
Housing color:	white
Housing material:	plastic
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	DC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
Connection type:	other
With control gear:	no
Cover material:	plastic opal
Installation height/depth:	7 mm
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	LED control gear voltage controlled
Suitable for Recessed installation:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation diameter:	57 mm
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming Trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	40 lm/W
Number of poles:	2
Replaceable Operating device:	no
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HAB12V/DC 2.5W 3000K 100lm quad. white

Manufacturer

HANL124250102

GTIN4037293022453

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Width75 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter57 mm

Installation height/depth7 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth6 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy40lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux100lm

Light distributionSymmetrical

Length75 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage12V

Emergency power supply integratedNo

Without dimming functionNo

Number of poles2

IP protection)IP20

Protection classIII

Voltage typeDC

System performance2.5W

Cover materialPlastic opal

Housing materialPlastic
