EVN L54121402RE IP54 2x6W 3000K 2x400lm 2-flmg. Alu LED wall light

EVN L54121402RE IP54 2x6W 3000K 2x400lm 2-flmg. Alu LED wall light

In stock

SKU: 811009

Price on request

€232.22

€0

Overview

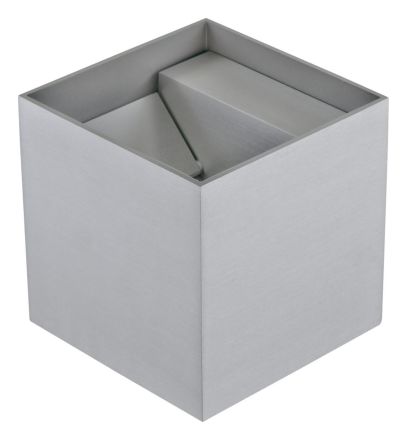

The LED wall light made of solid aluminum is suitable for a wide range of indoor and outdoor applications. Thanks to the protection class, the light can also be used in damp rooms. The unusual design makes the light an eye-catcher in every room. The beam angle of the light emission directed upwards and downwards is influenced by the aluminum reflectors on the side. Since the reflectors can be adjusted separately in both the upper and lower areas, the resulting light effect can be designed individually. The total output of the light is 800 lumens.

Property	Value
System power:	12 W
Luminous flux:	400 lm
Length:	123 mm
Width:	120 mm
Height/depth:	120 mm
Protection type (IP):	IP54
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	yes
Nominal voltage:	220 to 240 V
Housing color:	Aluminium
Housing material:	Aluminium
Color temperature:	3000 K
Impact resistance:	IK05
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Temperature:	-20 to 50 °C
Connection type:	Screw terminal
With operating device:	yes
Cover material:	transparent glass
Light distributor:	Reflector
Without dimming function:	yes
Light emission:	direct/indirect
With light sensor:	no
Operating device:	LED operating device current-controlled
Suitable for Recessed installation:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming Phase control:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Luminous efficacy:	66 lm/W
Number of poles:	3
Surface protection Housing:	powder-coated
Nominal current:	280 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	continuously variable
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABIP54 2x6W 3000K 2x400lm 2-flmg. Alu

Manufacturer

HANL54121402RE

GTIN4037293007702

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angle adjustableContinuously variable

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width120 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorAluminum

Height/Depth120 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes

Luminaire luminous efficacy66lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux400lm

Light distributorReflector

Length123 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current280mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionYes

Number of poles3

Impact resistanceIK05

IP protection)IP54

Protection classI

Voltage typeAC

System performance12W

Temperature-20 to 50 °C

Cover materialGlass transparent

Housing materialAluminum
