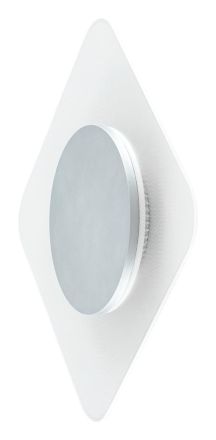

EVN WAQ20181402 110-240V 18W 3000K 1600lm quad. LED wall light

EVN WAQ20181402 110-240V 18W 3000K 1600lm quad. LED wall light

In stock

SKU: 811351

Price on request

€112.07

€0

Overview

LED wall-mounted light for a wide range of indoor applications. The all-round plastic disc made of PMMA is illuminated by an LED strip and the light is emitted at the frosted points of the plastic disc. Almost the entire plastic disc therefore functions as a light source and is an absolute highlight in any room. Due to the way it works, there is no glare effect, while at the same time there is sufficient lighting. The light can also be operated via a central battery with an input voltage of 176-276V/DC. The middle, silver cover is available separately in other colors for even more design options.

Property	Value
System power:	18 W
Luminous flux:	1600 lm
Length:	350 mm
Width:	350 mm
Height/depth:	45 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	110 to 240 V
Housing colour:	Silver
Housing material:	Aluminium
Colour temperature:	3000 K
Impact resistance:	IK05
Colour rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	free beam/diffuse
With Light source:	yes
Light source:	LED not replaceable
Connection type:	screw terminal
With control gear:	yes
Cover material:	plastic structured
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	LED control gear current-controlled
Suitable for Recessed installation:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming Phase control:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Luminous efficacy:	88 lm/W
Number of poles:	3
Surface protection Housing:	powder-coated
Nominal current:	350 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Luminous flux maintenance at average Service life 50,000 h at 25 °C ambient temperature:	30 %
Integrated emergency power supply:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HAB110-240V 18W 3000K 1600lm quad.

Manufacturer

HANWAQ20181402

GTIN4037293021678

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angleFree-radiating/diffuse

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width350 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorSilver

Height/Depth45 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy88lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1600lm

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.30 %

Light distributionSymmetrical

Length350 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage110 to 240 V

Rated current350mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionYes

Number of poles3

Impact resistanceIK05

IP protection)IP20

Protection classI

Voltage typeAC/DC

System performance18W

Cover materialPlastic structured

Housing materialAluminum
