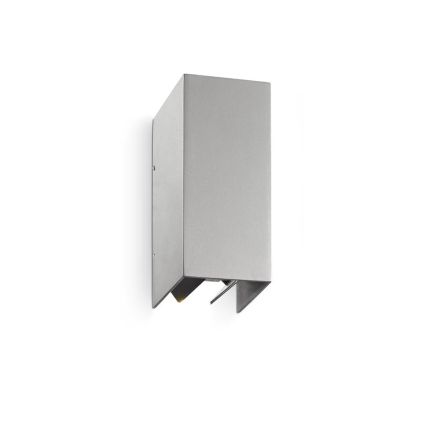

Fabas Luce 6792-02-844 silver 6W 3000K LED wall light LB20

Fabas Luce 6792-02-844 silver 6W 3000K LED wall light LB20

In stock

SKU: 733451

Price on request

€102.71

€0

Into a basketIn the basketGo

Overview

Zor, innovative LED outdoor light with adjustable beam angle on both sides

Property	Value
Luminous flux:	320 lm
Number of LM:	1
Length:	79 mm
Width:	110 mm
Height/depth:	171 mm
Protection rating (IP):	IP54
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	230 V
Housing color:	Silver
Housing material:	Aluminum
Color temperature:	2900 to 3100 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Temperature:	-10 to 40 °C
Socket:	other
Connection type:	other
With operating device:	yes
Cover material:	opal plastic
Light distributor:	without
Without dimming function:	yes
Light emission:	indirect
Light distribution:	asymmetrical
With light sensor:	no
Operating device:	electronic Transformer
Suitable for recessed installation:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life:	35000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	3 W
Luminaire luminous efficacy:	54 lm/W
Type of wiring:	Termination
Surface protection housing:	other
Energy efficiency class of the light source according to EU Directive 2019/2015:	A
Replaceable operating device:	no
Dimming DALI-2:	no
Color consistency (McAdam ellipse):	SDCM5
Luminous flux maintenance for average usage time of 35,000 hours at 25 °C ambient temp.:	20 %
Luminous flux maintenance for average usage time of 50,000 hours at 25 °C ambient temp.:	30 %
Luminous flux maintenance for average usage time of 75,000 hours at 25 °C ambient temp.:	40 %
Failure rate for average usage time of 35,000 hours at 25 °C ambient temp. (tq):	5 %
Failure rate over an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq):	7 %
Failure rate over an average service life of 75,000 hours at an ambient temperature of 25 °C. (tq):	10 %
Integrated emergency power supply:	no
Flicker value Pst LM:	0.9
Stroboscopic effect value SVM:	0.4
Constant luminous flux control:	no
Total harmonic distortion (THD):	20
Photobiological safety according to EN 62471:	RG0
Adjustable colour temperature:	no
Adjustable luminous flux:	no
Beam angle adjustable:	continuously
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Total harmonic distortion (THD)20

Stroboscopic effect value SVM0.4

Flicker value Pst LM0.9

HABSilver 6W 3000K

Manufacturer

HAN6792-02-844

GTIN8019282076308

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Beam angle adjustableContinuously variable

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width110 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Energy efficiency class of the light source according to EU Directive 2019/2015A

Color consistency (McAdam ellipse)SDCM5

Color temperature2900 to 3100 K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power3W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11Without

Height/Depth171 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy54lm/W

LampsLED not replaceable

Light emissionIndirect

Light colorWhite

Luminous flux320lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.30 %

Light distributorWithout

Light distributionAsymmetrical

Length79 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Emergency power supply integratedNo

Surface protection housingOther

Without dimming functionYes

Photobiological safety according to EN 62471RG0

IP protection)IP54

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Temperature-10 to 40 °C

Cover materialPlastic opal

Housing materialAluminum

Fabas Luce 6792-02-844 silver 6W 3000K LED wall light LB20
