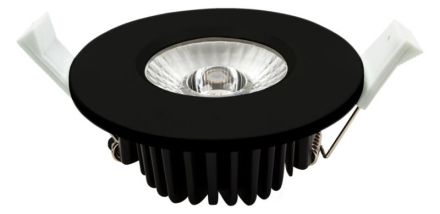

Ledxon 7008123 EDOS 6W 620lm 3000K 40° black LED recessed ceiling spotlight

Ledxon 7008123 EDOS 6W 620lm 3000K 40° black LED recessed ceiling spotlight

In stock

SKU: 991649

Price on request

€33.38

€0

Into a basketIn the basketGo

Overview

EDOS recessed spotlight flat including constant current source, 90mm, 40°, ww 3000K, 230V AC, 6W, CRI>80, IP44, black, 520lm, dimmable, EEI:A+

Property	Value
Max. System power:	6 W
Rated luminous flux according to IEC 62722-2-1:	620 lm
Housing color:	black
Protection class:	II
Color temperature:	3000 K
Nominal voltage:	230 V
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Luminous flux:	620 lm
Voltage type:	AC
Light color:	white
Dimming 0-10 V:	no
Dimming DALI:	no
Dimming manufacturer-specific:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming with push button:	no
Without dimming function:	no
Rated service life L70/B50 at 25 °C:	40000 h
Colour consistency (McAdam ellipse):	SDCM3

Characteristics

HABEDOS 6W 620lm 3000K 40° black

Manufacturer

HAN7008123

GTIN4260691438681

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C40000 hours

Rated luminous flux according to IEC 62722-2-1620lm

Dimming 0-10 VNo

Dimming DALINo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI80-89

Housing colorBlack

Light colorWhite

Luminous flux620lm

Light distributionSymmetrical

Max. system performance6W

Nominal voltage230V

Without dimming functionNo

Protection classII

Voltage typeAC
