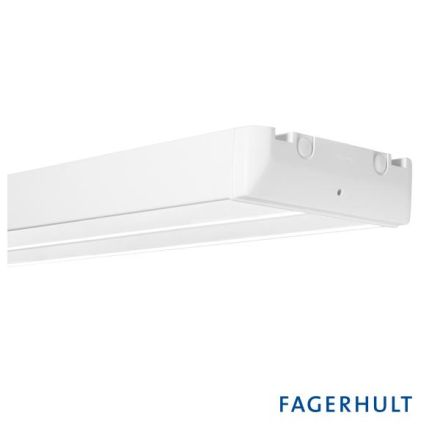

LTS EXCIS 115.2030-WF/DALI WHITE LED reflector light 166W Excis wide ( 649043 )

In stock
SKU: 742572
€997.63
Into a basketIn the basketGo

Overview

Ceiling and pendant luminaire for primary use in sports halls, tested ball impact safety according to DIN 18032-3, easy to maintain, no UV and heat radiation, housing made of white enamelled aluminium, front sides made of polycarbonate, satin aluminium reflector, LEDs with linear prism diffusers for glare-free light, including through-wiring, wire rope suspension L 80/1500 available as an accessory, integrated mounting plates for easy ceiling mounting, clear acrylic protective glass, 5-pin connection terminal, operating device (LED converter DALI, dimmable) integrated

PropertyValue
Light source:LED linear / CRI 80 / 3000 K
Service life:L80 B50 85,000h
Luminous flux: 19890lm
Beam angle:35
System power: 166W
System efficiency: 119.81lm/W
Energy efficiency class:A++
UGR 4H/8H 70/50/20:20.8/21.4 (C0/C90)
Supply unit:Operating device (LED converter DALI, dimmable)
Supply voltage220 - 240 V / 50 Hz
Protection class:I
Protection type:IP20
Standards:CE
Weight:9.00kg
Dimensions (LxWxH) :1150 x 324 x 95 mm
Colors: white

Characteristics

HABEXCIS 115.2030-WF/DALI white
ManufacturerLTS
HAN649043
GTIN7320046288686
Beam angle35
Energy efficiency classA++
Weight9.00 kg
LifespanL80 B50 85,000h
Luminaire luminous flux19890lm
LampsLED linear / CRI 80 / 3000 K
StandardsCE
Protection classIP20
Protection classI
System efficiency119.81lm/W
System performance166W
UGR4H/8H70/50/2020.8/21.4 (C0/C90)
Supply unitControl gear (LED converter DALI, di mmable)
