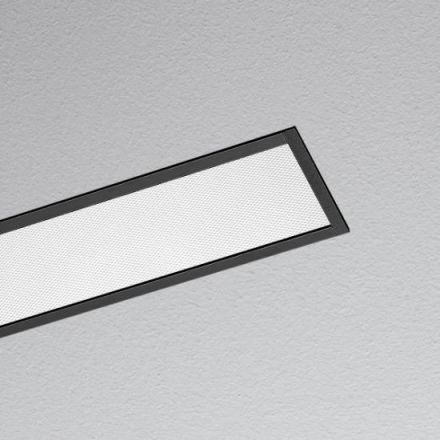

LTS ML-E 045.1040.08 APB black LED ceiling light EB 19W Monoline 4000K ( 663250 )

In stock
SKU: 749707
€215.80
Into a basketIn the basketGo

Overview

Linear luminaire for installation in plasterboard, symmetrical light distribution and illumination, easy to maintain, no UV and heat radiation, housing with discreet edge (5 mm) made of aluminum, end cover made of die-cast zinc, quick assembly via clamping bracket, acrylic glass diffuser prismatically flush with profile guide and tool-free snap-in technology, 5-pin connection terminal, operating device (LED converter) integrated

PropertyValue
Light source:LED linear / CRI 80 / 4000 K
Service life:L90 50,000 hL80 100,000 hL80 B20 50,000 h
Luminaire luminous flux: 1850lm
System power: 19W
System efficiency: 97.36lm/W
Module efficiency: 164.17lm/W
Energy efficiency class:A+
UGR 4H/8H 70/50/20:22.0/22.8 (C0/C90)
Supply unit:Operating device (LED converter)
Supply voltage220 - 240 V / 50 Hz
Protection class:I
Protection type:IP40
Standards:CE
Weight:1.48kg
Dimensions (LxWxH) :864 x 54 x 60 mm
Installation depth:90 mm
Cutout dimensions (LxW):857 x 48 mm
Ceiling thickness:11 - 35 mm
Colors: silver anodized, black, white

Characteristics

HABML-E 045.1040.08 APB black
ManufacturerLTS
HAN663250
GTIN4043544723154
Ceiling thickness11 - 35 mm
Installation depth90 mm
Energy efficiency classA+
Weight1.48 kg
LifespanL90 50,000 hL80 100,000 hL80 B20 50,000 h
Luminaire luminous flux1850lm
LampsLED linear / CRI 80 / 4000 K
Module efficiency164.17lm/W
StandardsCE
Protection classIP40
Protection classI
System efficiency97.36lm/W
System performance19W
UGR4H/8H70/50/2022.0/22.8 (C0/C90)
Supply unitControl gear (LED converter)
