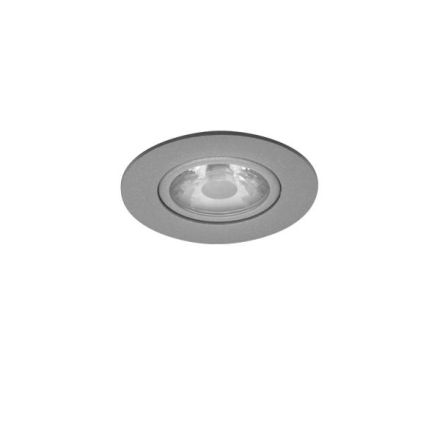

LTS VTRXS 10.0530.60/DALI LED spotlight 12W Vale-Tu 3000K 1050lm si ( 663802 )

In stock
SKU: 751037
€102.21
Into a basketIn the basketGo

Overview

Recessed spotlight with round and flush front frame, reflector lens can be swivelled 20°, easy to maintain, no UV and heat radiation, innovative heat management with passive cooling, installation funnel and heat sink made of die-cast aluminium, high-tech reflector lens made of acrylic glass for optimum light output and glare control, tool-free ceiling installation with quick-release springs (automatic adjustment of ceiling thickness), connection to control gear via light cable with mini-clamp plug connection, control gear (LED converter DALI, dimmable) included (external placement)

PropertyValue
Light source:LED Spot / CRI 80 / 3000 K
Service life:L90 50,000 hL80 100,000 hL80 B20 50,000 h
Luminous flux: 1050lm
Beam angle:60°
System power: 12W
System efficiency: 87.50lm/W
Module efficiency: 96.00lm/W
Energy efficiency class:A+
UGR 4H/8H 70/50/20:28.9/28.9 (C0/C90)
Supply unit:Operating device (LED converter DALI, dimmable)
Supply voltage220 - 240 V / 50 Hz
Protection class:III
Protection type:IP40
Standards:CE
Weight:0.55kg
Diameter Light head:50mm
Installation depth:87 mm
Cut-out dimensions ():68 mm
Ceiling thickness:10 - 15 mm
Height:76 mm
Outer diameter:80 mm
Colors: silver

Characteristics

HABVTRXS 10.0530.60/DALI silver
ManufacturerLTS
HAN663802
GTIN4043544729392
Beam angle60°
Outer diameter80 mm
Ceiling thickness10 - 15 mm
Diameter light head50 mm
Installation depth87 mm
Energy efficiency classA+
Weight0.55 kg
Height76 mm
LifespanL90 50,000 hL80 100,000 hL80 B20 50,000 h
Luminaire luminous flux1050lm
LampsLED Spot / CRI 80 / 3000 K
Module efficiency96.00lm/W
StandardsCE
Protection classIP40
Protection classIII
System efficiency87.50lm/W
System performance12W
UGR4H/8H70/50/2028.9/28.9 (C0/C90)
Supply unitControl gear (LED converter DALI, di mmable)
