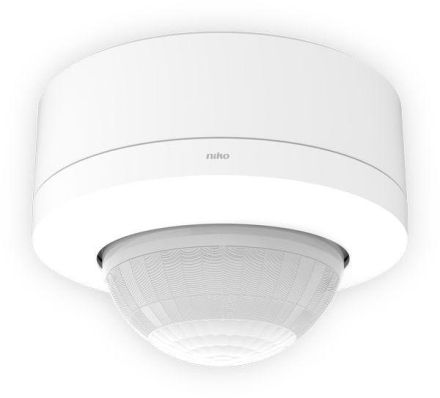

NIKO 353-752321 Presence detector

In stock

SKU: 915141

Price on request

€162.74

€0

Overview

This presence detector is a DALI 2 master detector for DALI light control in up to 3 daylight zones. It is designed for surface mounting and has protection class IP54. The lighting zones are defined during commissioning, via the Niko Detector Tool app and the 2-way Bluetooth® communication between smartphone and detector. Color: white. Compatible secondary detectors: 353 650021, 353 651021, 353 652021, 353 750021, 353 751021, 353 752021, 353 852011

Property	Value
Depth:	50 mm
Width:	100 mm
Height:	50 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	20 to 2000 lx
Protection class (IP):	IP20
Max. switching capacity:	2300 W
Voltage type:	AC
Max. Range to one side:	37 m
Scan angle:	360 °
Suitable for wall mounting:	no
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	50 m²
Max. Frontal range:	10 m
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	37 m
Control current:	100 mA
Switch-off delay:	7200 s
Horizontal detection angle:	360 °
Frequency:	50 Hz
Sensor swivel range, vertical:	360 °
Sensor swivel range, horizontal:	360 °
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bridging switch:	no
Suitable for wireless transmission:	yes
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	yes
Extension input:	yes
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	100 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness20 to 2000 lx

Forced shutdownYes

Scanning angle360 °

Forced switching onNo

Max. presence range50 m²

HAB353-752321

Manufacturer

HAN353-752321

GTIN5413736374201

Dimming function with dimming insertYes

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width100 mm

Diameter100 mm

Detection field diameter on floor37m

Detection angle horizontal360°

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionYes

HVAC controlNo

Halogen freeYes

Height50 mm

Constant light controlYes

Max. range frontal10m

Max. range to one side37m

Max. switching capacity2300W

With DALI interfaceYes

With remoteNo

Mounting typeSurface-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

Impact resistanceIK04

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-25 to 40 °C

Depth50 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
