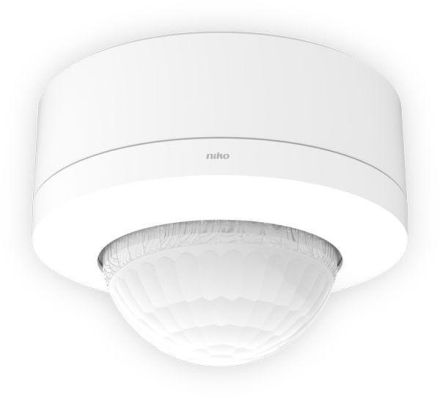

NIKO 353-802011 motion detector

In stock
SKU: 915087
€129.84
Into a basketIn the basketGo

Overview

This detector for high ceilings is a secondary detector that increases the detection range of a 230 V master detector. It is designed for surface mounting and has protection class IP54. The detector settings can be changed via the Niko Detector Tool app and the 2-way Bluetooth® communication between smartphone and detector. Color: white. Compatible master detectors: 353 600121, 353 601121, 353 601221, 353 602121, 353 602221, 353 700121, 353 701121, 353 701221, 353 702121, 353 702221, 353 802111

PropertyValue
Depth:50 mm
Width:100 mm
Height:50 mm
Version:motion detector
Color:white
Nominal voltage:230 V
RAL number (similar):9010
Material:plastic
Mounting type:surface-mounted
Protection class (IP):IP54
Voltage type:AC
Max. range to one side:26.5 m
Scan angle:360 °
Suitable for wall mounting:no
Creep-under protection/rear field monitoring:yes
Temperature:-25 to 40 °C
Adjustable response brightness:yes
Adjustable response sensitivity:yes
Max. Range frontal:23 m
Sensor type:passive infrared
Optimal mounting height:3 m
Surface finish:matt
Surface:untreated
Material quality:thermoplastic
Detection field diameter on floor:53 m
Detection angle horizontal:360 °
Frequency:50 Hz
Sensor swivel range, vertical:360 °
Sensor swivel range, horizontal:360 °
Halogen-free:yes
Constant light control:no
HVAC control:no
Forced shutdown:no
Animal corridor:no
Networkable:no
Staircase monitoring:no
Bypass switch:no
Suitable for wireless transmission:yes
Remote control:yes
With signal unit:no
Alarm function:no
Teach function for response brightness:no
Dimming function with dimming insert:no
Transparent:no
With remote control:no
With DALI interface:no
Extension input:no
Forced switching on:no
Suitable for ceiling mounting:yes
Connection type:Plug-in terminal
Antibacterial treatment:no
Impact resistance:IK04
Diameter:100 mm

Characteristics

Bridging switchNo
With signal unitNo
Forced shutdownNo
Scanning angle360 °
Forced switching onNo
HAB353-802011
ManufacturerNIKO
HAN353-802011
GTIN5413736374225
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
VersionMotion detector
Surface finishFrosted
Width100 mm
Diameter100 mm
Detection field diameter on floor53m
Detection angle horizontal360°
ColorWhite
Remote controllableYes
Frequency50Hz
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionYes
HVAC controlNo
Halogen freeYes
Height50 mm
Constant light controlNo
Max. range frontal23m
Max. range to one side26.5m
With DALI interfaceNo
With remoteNo
Mounting typeSurface-mounted
Extension inputNo
Nominal voltage230V
SurfaceUntreated
Optimal mounting height3m
RAL number (similar)9010
Impact resistanceIK04
IP protection)IP54
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessNo
Temperature-25 to 40 °C
Depth50 mm
Animal corridorNo
TransparentNo
Staircase monitoringNo
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
