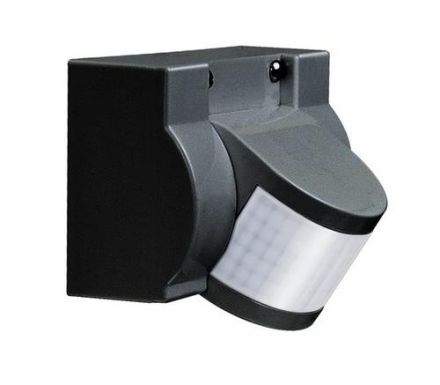

NIKO 26260 Swiss Garde 2100 IR AP black motion detector

NIKO 26260 Swiss Garde 2100 IR AP black motion detector

In stock

SKU: 391909

Price on request

€91.45

€0

Overview

AP outdoor motion detector for ceiling mounting / Zueblin Swiss Garde 2100 IR black / PIR sensor with 200° horizontal detection range + 360° creep-under protection / range approx. 12m frontally and approx. 6m laterally at 3m height, 5m creep-under protection / installation height approx. 2-8 meters / IP55 jet-proof, class II / 1x relay light channel / configuration via remote control

Property	Value
Depth:	70 mm
Width:	105 mm
Height:	68 mm
Version:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	surface-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP55
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	5 m
Scan angle:	200 °
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-20 to 55 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	50 m²
Max. frontal range:	14 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	28 m
Detection angle horizontal:	0 to 200 °
Frequency:	50 Hz
Sensor swivel range, vertical:	0 to 180 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Suitable for wireless transmission:	no
Remote control:	yes
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Min. inrush current:	5 A

Characteristics

Response brightness5 to 2000 lx

Max. inrush current10 A

Scanning angle200 °

Max. presence range50 m²

HABSwiss Garde 2100 IR AP black

Manufacturer

HAN26260

GTIN3505100262602

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionMotion detector

Surface finishFrosted

Width105 mm

Detection field diameter on floor28m

Detection angle horizontal0 to 200 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height68 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal14m

Max. range to one side5 m

Max. switching capacity2300W

Min. duty cycle10s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP55

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 55 °C

Depth70 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
