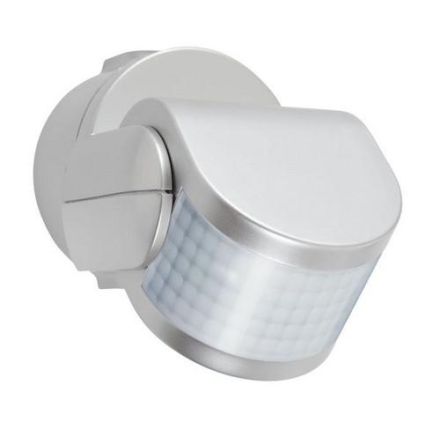

NIKO 26480 Swiss Garde 3100 IR 14m alu motion detector

NIKO 26480 Swiss Garde 3100 IR 14m alu motion detector

In stock

SKU: 537301

Price on request

€86.10

€0

Overview

AP/UP motion detector for ceiling and wall mounting / Zueblin Swiss Garde 3100 IR alu / PIR sensor with 200° horizontal detection range + 360° creep-under protection / range approx. 12m frontally and approx. 6m laterally at 3m height, 5m creep-under protection / installation height approx. 2-8 meters / IP55 jet-proof, class II / 1x relay light channel / time controller: short pulse (approx. 1s), approx. 10s to 20min / configuration via remote control or APP

Property	Value
Depth:	62 mm
Width:	63 mm
Height:	63 mm
Design:	Motion detector
Color:	Aluminum
Nominal voltage:	230 V
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP55
Max. switching power:	2300 W
Voltage type:	AC
Max. range to one side:	7 m
Scan angle:	200 °
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-20 to 55 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	300 m²
Max. frontal range:	7 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	5 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	14 m
Number of switching zones:	1
Detection angle horizontal:	0 to 200 °
Frequency:	50 Hz
Sensor swivel range, vertical:	0 to 180 °
Sensor swivel range, horizontal:	0 to 360 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Networkable:	no
Staircase monitoring:	yes
Suitable for wireless transmission:	no
Remote control:	yes
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Min. inrush current:	5 A
Diameter:	63 mm

Characteristics

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current10 A

Scanning angle200 °

Forced switching onYes

Max. presence range300 m²

HABSwiss Garde 3100 IR 14m alu

Manufacturer

HAN26480

GTIN3505100264804

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionMotion detector

Surface finishFrosted

Width63 mm

Diameter63 mm

Detection field diameter on floor14m

Detection angle horizontal0 to 200 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height63 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal7m

Max. range to one side7m

Max. switching capacity2300W

Min. duty cycle10s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height5 m

IP protection)IP55

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 55 °C

Depth62 mm

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
