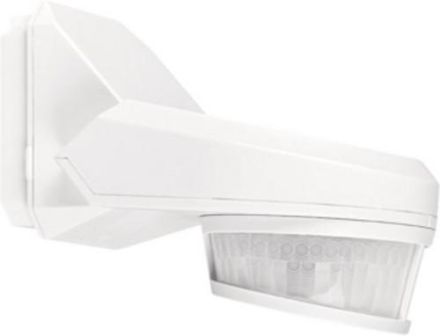

NIKO 26570 Motion detector Swiss Garde 4000-300 white

NIKO 26570 Motion detector Swiss Garde 4000-300 white

In stock

SKU: 238076

Price on request

€103.50

€0

Overview

First-class motion detector with real small animal suppression, for wall or ceiling mounting, Technical data: Nominal voltage: 230 Volt / 50Hz, Power consumption: <, 0.25W standby, Switching capacity: 2000 W, 8.7A max. (cos phi = 1), 1000 VA, 4.35A max. inductive (cos phi = 0.5), Potential-free relay, Time setting: Pulse approx. 1 sec (20 or 60 sec pause), approx. 10 sec to 20min, Twilight: 5-2000 Lux, IR remote control: Auto, On, OFF (4-6m range), Small animal suppression ON/OFF, Directable: 90° vertical, 90° horizontal, Detection range: 120° or 240° or 300° horizontal, +360° Creep guard, range: 16m max. frontal, 16m max. sideways, 4m creep guard, installation height: 2m to 5m (2.5m standard), dimensions: 148x105x85 mm, temperature range: -20° to +50° C, protection class II, including end customer hand-held transmitter, corner base for 300° version incl.

Property	Value
Depth:	148 mm
Width:	105 mm
Height:	112 mm
Version:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	surface-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP54
Max. switching capacity:	2000 W
Voltage type:	AC
Max. range to one side:	16 m
Scan angle:	300 °
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-20 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	670 m²
Max. frontal range:	16 m
Max. Inrush current:	8.7 A
Sensor type:	passive infrared
Optimal mounting height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	32 m
Number of switching zones:	1
Detection angle horizontal:	0 to 300 °
Frequency:	50 Hz
Sensor swivel range, vertical:	0 to 180 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Suitable for wireless transmission:	no
Remote control:	yes
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	yes
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Min. Inrush current:	4.35 A

Characteristics

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownNo

Max. inrush current8.7 A

Scanning angle300 °

Forced switching onNo

Max. presence range670 m²

Manufacturer

HAN26570

GTIN3505100265702

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionMotion detector

Surface finishFrosted

Width105 mm

Detection field diameter on floor32m

Detection angle horizontal0 to 300 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height112 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal16m

Max. range to one side16m

Max. switching capacity2000W

Min. duty cycle10s

With DALI interfaceNo

With remoteYes

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 50 °C

Depth148 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
