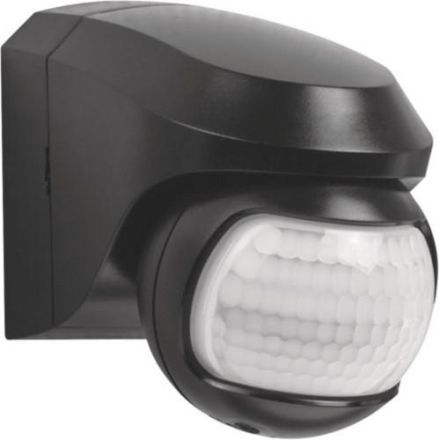

NIKO 3165 motion detector Infra Garde 200 Max black

NIKO 3165 motion detector Infra Garde 200 Max black

In stock

SKU: 238059

Price on request

€42.22

€0

Overview

Outdoor motion detector for quick installation with integrated short pulse function, Technical data: Nominal voltage: 230 V, Detection range: 200°, Range: approx. 11 m frontally and approx. 5.5 m laterally at a height of 3 m, Installation height: approx. 2 - 4 m, Twilight controller: 5 - 1000 lx, Time controller: short pulse (approx. 1s), approx. 30 s to 15 min, Protection class: IP44 splash-proof, Class II, Temperature range: -25 to +55 °C, Dimensions: 70 x 100 x 100 mm

Property	Value
Depth:	100 mm
Width:	75 mm
Height:	100 mm
Design:	motion detector
Color:	black
Nominal voltage:	230 V
Material:	plastic
Mounting type:	Surface-mounted
Response brightness:	5 to 1000 lx
Protection class (IP):	IP44
Max. switching power:	1000 W
Voltage type:	AC
Max. range to one side:	6 m
Scan angle:	200 °
Suitable for wall mounting:	yes
Min. duty cycle:	30 s
Max. Duty cycle:	15 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 55 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. presence range:	31 m²
Max. frontal range:	12 m
Max. Inrush current:	4.35 A
Sensor type:	passive infrared
Optimal mounting height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	22 m
Number of switching zones:	1
Detection angle horizontal:	0 to 200 °
Frequency:	50 Hz
Sensor swivel range, vertical:	0 to 45 °
Sensor swivel range, horizontal:	0 to 45 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Suitable for wireless transmission:	no
Remote control:	no
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	no
Connection type:	Screw terminal
Antibacterial treatment:	yes
Min. inrush current:	1.25 A

Characteristics

Number of switching zones1

Response brightness5 to 1000 lx

Forced shutdownNo

Max. inrush current4.35 A

Scanning angle200 °

Max. presence range31 m²

Manufacturer

HAN3165

GTIN3505100031659

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentYes

VersionMotion detector

Surface finishFrosted

Width75 mm

Detection field diameter on floor22m

Detection angle horizontal0 to 200 °

Color

Remote controllableNo

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height100 mm

Constant light controlNo

Max. duty cycle15 minutes

Max. range frontal12m

Max. range to one side6m

Max. switching capacity1000W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

IP protection)IP44

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 55 °C

Depth100 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
