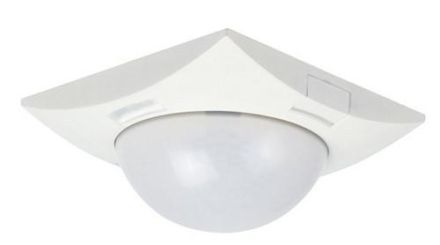

NIKO 25020N Swiss Garde 360 Presence KNX UP

In stock
SKU: 238181
€152.31
Into a basketIn the basketGo

Overview

Standard presence detector with KNX interface, 4 pyrodetectors and a high-resolution lens detect the smallest movements, operation as a fully or semi-automatic device, the light sensor can trigger a 0 or 1 telegram in all operating modes when a parameterizable lux value is exceeded or undershot, the measured light value in lux can also be read out via the bus

PropertyValue
Optimal installation height:5 m
Color:white
Design:Presence detector
Installation type:Flush-mounted
KNX bus system:yes
Max. range to one side:8 m
Max. range frontal:8 m
Horizontal detection angle:0 to 360 °
Min. duty cycle:1 s
Max. Duty cycle:240 min
Detection field diameter on floor:16 m
Response brightness adjustable:yes
LON bus system:no
Powernet bus system:no
Other bus systems:other
Material:plastic
Surface:anodized
RAL number (similar):9010
With bus connection:yes
Creep protection/rear field monitoring:no
Transparent:no
KNX radio bus system:yes

Characteristics

ManufacturerNIKO
HAN25020N
GTIN3505100250203
Other bus systemsOther
Response brightness adjustableYes
VersionPresence detector
KNX bus systemYes
KNX radio bus systemYes
LON bus systemNo
Powernet bus systemNo
Detection field diameter on floor16m
Detection angle horizontal0 to 360 °
ColorWhite
Max. duty cycle240 min
Max. range frontal8m
Max. range to one side8m
Min. duty cycle1s
With bus connectionYes
Mounting typeFlush-mounted
SurfaceAnodized
Optimal mounting height5 m
RAL number (similar)9010
TransparentNo
Creep protection/rear field monitoringNo
MaterialPlastic
