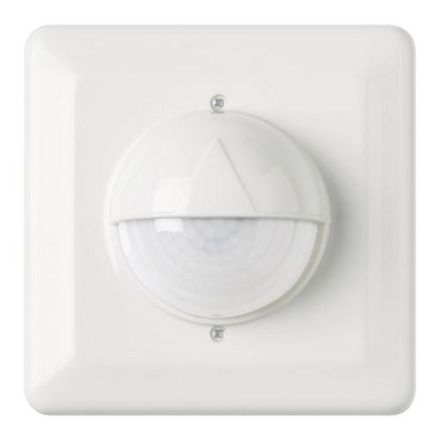

NIKO 25100 Swiss Garde 300 WM IR, IP44, 10 m

In stock

SKU: 238081

Price on request

€73.26

€0

Overview

UP motion detector for wall mounting / Zueblin Swiss Garde 300 WM IR white / 3 PIR sensors with 180° detection range / Range approx. 10m radius at 3m height / Installation height approx. 1-3 meters / IP44 splash-proof / 1x relay light channel / Time controller: short pulse (approx. 1s), approx. 10s to 20min / Configuration via remote control or APP

Property	Value
Depth:	70 mm
Width:	86 mm
Height:	86 mm
Design:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP44
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	10 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	157 m²
Max. frontal range:	10 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	1 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	20 m
Detection angle horizontal:	0 to 180 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	no
Connection type:	Plug-in terminal
Diameter:	86 mm
Installation width:	47 mm
Installation depth:	40 mm
Installation length:	47 mm
Installation diameter:	47 mm
Min. depth of device box:	40 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness5 to 2000 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle180 °

Max. presence range157 m²

Manufacturer

HAN25100

GTIN3505100251002

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

VersionMotion detector

Surface finishFrosted

Width86 mm

Diameter86 mm

Installation width47 mm

Installation diameter47 mm

Installation length47 mm

Installation depth40 mm

Detection field diameter on floor20m

Detection angle horizontal0 to 180 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height86 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal10m

Max. range to one side10m

Max. switching capacity2300W

Min. duty cycle10s

Min. depth of the device box40 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height1m

RAL number (similar)9010

IP protection)IP44

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 50 °C

Depth70 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
