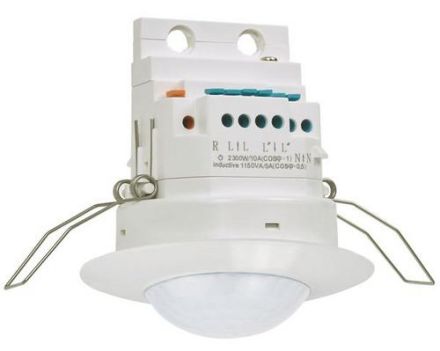

NIKO 25170 Swiss Garde 360 Presence EB, 16 m

In stock

SKU: 238142

Price on request

€73.12

€0

Overview

UP presence detector for ceiling mounting, Züblin Swiss Garde 360 Presence EB, 3 PIR sensors with 360° detection range, range approx. 6m presence, approx. 14m at 3m height, mounting height approx. 2-6 meters, IP20 indoor installation, class II, 1x relay light channel, time controller: short pulse (approx. 1s), approx. 10s to 20min, button input for manual switching on, configuration via remote control or APP

Property	Value
Depth:	95 mm
Width:	75 mm
Height:	75 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	7 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	201 m²
Max. frontal range:	7 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	14 m
Detection angle horizontal:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Min. Inrush current:	10 A
Diameter:	75 mm
Installation width:	63 mm
Installation depth:	75 mm
Installation length:	63 mm
Installation diameter:	63 mm
Min. depth of device box:	75 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness5 to 2000 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle360 °

Forced switching onYes

Max. presence range201 m²

Manufacturer

HAN25170

GTIN3505100251705

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

VersionPresence detector

Surface finishFrosted

Width75 mm

Diameter75 mm

Installation width63 mm

Installation diameter63 mm

Installation length63 mm

Installation depth75 mm

Detection field diameter on floor14m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height75 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal7m

Max. range to one side7m

Max. switching capacity2300W

Min. duty cycle10s

Min. depth of the device box75 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth95 mm

Animal corridorNo

TransparentNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
