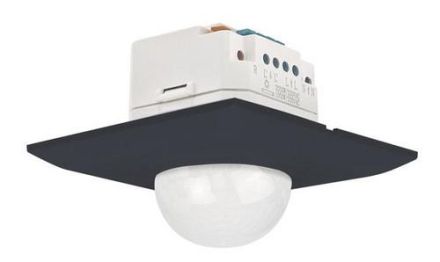

NIKO 25190 motion detector Swiss Garde 360 Plus, 16 m black

NIKO 25190 motion detector Swiss Garde 360 Plus, 16 m black

In stock

SKU: 238143

Price on request

€84.26

€0

Overview

UP motion detector for ceiling mounting, Züblin Swiss Garde 360 Plus black, 3 PIR sensors with 360° detection range (up to 16m), range approx. 14m at 3m height, mounting height approx. 2-6 meters, IP20 indoor installation, class II (accessories for IP55 available), 1x relay light channel, time controller: short pulse (approx. 1s), approx. 10s to 20min, button input for manual switching on, configuration via remote control or APP

Property	Value
Depth:	71 mm
Width:	88 mm
Height:	86 mm
Design:	motion detector
Color:	black
Nominal voltage:	230 V
Material:	plastic
Mounting type:	flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. switching power:	2300 W
Voltage type:	AC
Max. range to one side:	8 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	201 m²
Max. frontal range:	8 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	14 m
Number of switching zones:	1
Switch-on delay:	1 s
Horizontal detection angle:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote control:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Diameter:	88 mm
Installation width:	48 mm
Installation depth:	36 mm
Installation length:	48 mm
Installation diameter:	48 mm
Min. depth of device box:	40 mm

Characteristics

Bridging switchNo

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle360 °

Max. presence range201 m²

Manufacturer

HAN25190

GTIN3505100251903

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

VersionMotion detector

Surface finishFrosted

Width88 mm

Diameter88 mm

Installation width48 mm

Installation diameter48 mm

Installation length48 mm

Installation depth36 mm

Detection field diameter on floor14m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height86 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal8m

Max. range to one side8m

Max. switching capacity2300W

Min. duty cycle10s

Min. depth of the device box40 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth71 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
