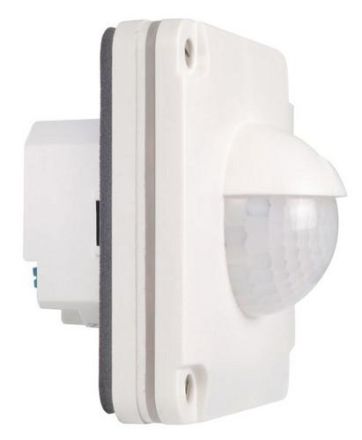

NIKO 25230 Motion detector Swiss Garde 300 UP IP55 white

NIKO 25230 Motion detector Swiss Garde 300 UP IP55 white

In stock

SKU: 238083

Price on request

€93.97

€0

Overview

Motion detector with increased splash protection for wall mounting from 1.0 to 3.0 m possible thanks to horizontal and vertical detection range. Ideal for wet rooms and outdoor applications. External switch (ON). Color: white.

Property	Value
Depth:	76 mm
Width:	86 mm
Height:	86 mm
Design:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP55
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	8 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	64 m²
Max. frontal range:	10 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	16 m
Number of switching zones:	1
Detection angle horizontal:	0 to 180 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimmer insert:	no
Transparent:	no
With remote control:	yes
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Min. Inrush current:	5 A
Diameter:	86 mm
Installation width:	48 mm
Installation depth:	38 mm
Installation length:	48 mm
Installation diameter:	48 mm
Min. depth of device box:	33 mm

Characteristics

Bridging switchNo

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current10 A

Scanning angle180 °

Forced switching onYes

Max. presence range64 m²

Manufacturer

HAN25230

GTIN3505100252306

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionMotion detector

Surface finishFrosted

Width86 mm

Diameter86 mm

Installation width48 mm

Installation diameter48 mm

Installation length48 mm

Installation depth38 mm

Detection field diameter on floor16m

Detection angle horizontal0 to 180 °

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height86 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal10m

Max. range to one side8m

Max. switching capacity2300W

Min. duty cycle10s

Min. depth of the device box33 mm

With DALI interfaceNo

With remoteYes

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP55

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 50 °C

Depth76 mm

Animal corridorNo

TransparentNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
