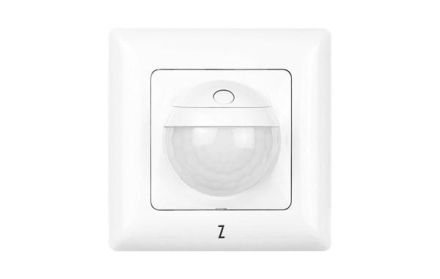

NIKO 25395D Swiss Garde 300 Presence UP Max, D

In stock

SKU: 238110

Price on request

€87.99

€0

Overview

Ideal for corridors, offices and door areas Presence detector with button function (can be locked) for manual light control Light can be switched on or off manually with a 10min or 10h timer With invisible screw fixing also suitable for public areas Thanks to 3 PIR sensors suitable for wall mounting at a height of 12.5m Color-coordinated with Feller EDIZIOdue switching program.

Property	Value
Depth:	67 mm
Width:	80 mm
Height:	80 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. switching capacity:	2000 W
Voltage type:	AC
Max. range to one side:	10 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. presence area:	157 m²
Max. frontal range:	10 m
Max. Inrush current:	8.7 A
Sensor type:	passive infrared
Optimal installation height:	2 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	20 m
Number of switching zones:	1
Detection angle horizontal:	0 to 180 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Min. inrush current:	5 A
Diameter:	80 mm
Installation width:	48 mm
Installation depth:	35 mm
Installation length:	48 mm
Installation diameter:	48 mm
Min. depth of device box:	35 mm

Characteristics

Bridging switchNo

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current8.7 A

Scanning angle180 °

Forced switching onYes

Max. presence range157 m²

Manufacturer

HAN25395D

GTIN3505100253952

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentYes

VersionPresence detector

Surface finishFrosted

Width80 mm

Diameter80 mm

Installation width48 mm

Installation diameter48 mm

Installation length48 mm

Installation depth35 mm

Detection field diameter on floor20m

Detection angle horizontal0 to 180 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height80 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal10m

Max. range to one side10m

Max. switching capacity2000W

Min. duty cycle10s

Min. depth of the device box35 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth67 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
