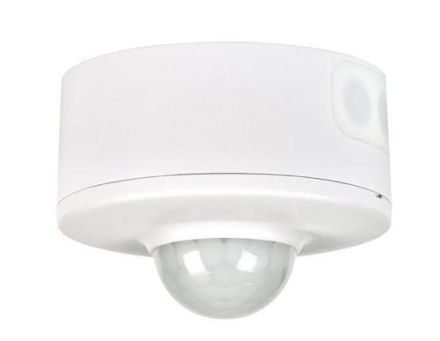

NIKO 25452 Presence detector Swiss Garde 360 Master AP 16 m white

Ideal for all standard applications (presence areas) in offices, meeting rooms, lounges, basements, etc.
Presence detector with minimal power consumption of 0.25 W
Master-slave circuit for inexpensive enlargement of the detection area
Can be used in installations as a single device or in combination with other Züblin master and slave devices, e.g. B. 25453, 25458, 25459, 25464, 25469
Can be programmed as a fully or semi-automatic device
Manual control via external button possible
IP44 for indoor and outdoor use (splash protection)

Technical data

Mounting position ceiling
Mounting type surface-mounted
Nominal voltage 230V / 50 Hz
Standby consumption 0.25 W
Power consumption 0.6 W
Switching capacity ohmic (cos 1.0) 2000W / 8.7A
Switching capacity inductive (cos 0.5) 1000VA / 4.35A
Switching capacity LED 300W
Networking Relay
Type of control daylight-dependent on/off
Number PIR sensors 3
Detection angle 360°
Detection radius passage area 7.00 m
Detection radius stay area 3.00 m
Installation height 2.00 to 6.00 m
Twilight controller 5 - 2000 lx
Time delay short pulse (approx. 1 s), 10 s - 20 min
Protection class IP44, protected outdoor area
Temperature range -20 to 40 °C
Visible dimensions [mm] 105x75
Weight 0.25 kg
Cover round
Color white
