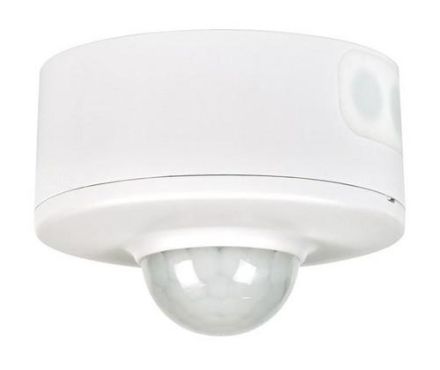

NIKO 25453 Swiss Garde 360 Slave AP 16 m presence detector

NIKO 25453 Swiss Garde 360 Slave AP 16 m presence detector

In stock

SKU: 391914

Price on request

€88.84

€0

Overview

AP presence detector for ceiling mounting / Zueblin Swiss Garde 360 presence slave AP, 16m / 3 PIR sensors with 360° detection range / range approx. 6m presence, approx. 14m at 3m height / mounting height approx. 2-6 meters / IP44 / not remote controllable

Property	Value
Depth:	75 mm
Width:	105 mm
Height:	105 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP44
Max. switching capacity:	2000 W
Voltage type:	AC
Max. range to one side:	8 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	yes
Max. presence area:	201 m²
Max. frontal range:	8 m
Max. Inrush current:	8.7 A
Sensor type:	passive infrared
Optimal installation height:	4 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	16 m
Number of switching zones:	1
Detection angle horizontal:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	no
Suitable for wireless transmission:	no
Remote control:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial Treatment:	yes
Min. inrush current:	5 A
Diameter:	105 mm

Characteristics

With signal unitNo

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current8.7 A

Scanning angle360 °

Forced switching onYes

Max. presence range201 m²

HABSwiss Garde 360 Slave AP 16 m

Manufacturer

HAN25453

GTIN3505100254539

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableNo

Antibacterial treatmentYes

VersionPresence detector

Surface finishFrosted

Width105 mm

Diameter105 mm

Detection field diameter on floor16m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height105 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal8m

Max. range to one side8m

Max. switching capacity2000W

Min. duty cycle10s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height4m

RAL number (similar)9010

IP protection)IP44

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth75 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
