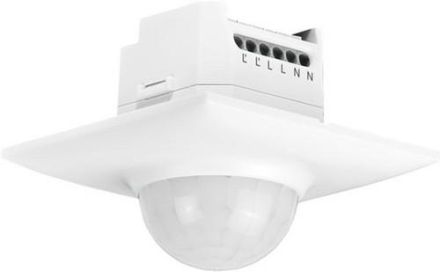

NIKO 25456 Ceiling detector Swiss Garde 360 Presence Master, 16 m white

In stock
SKU: 238149
€86.81
Into a basketIn the basketGo

Overview

for flush-mounted ceiling mounting, round cover, ideal for all standard applications in offices, meeting rooms, lounges, basements etc., zero-crossing switching to protect the relay, discreet and flat design, setting of all parameters LUX/SENS/time manually or via P-IR handheld transmitter, short pulse pause time adjustable to 20 or 60s via P-IR handheld remote control, additional button input for manual switching on/off, time controller with integrated short pulse function for controlling staircase light automation or gongs etc.

PropertyValue
Depth:71 mm
Width:86 mm
Height:86 mm
Version:Presence detector
Color:white
Nominal voltage:230 V
RAL number (similar):9010
Material:Plastic
Mounting type:Flush-mounted
Response brightness:5 to 2000 lx
Protection class (IP):IP20
Max. switching capacity:2000 W
Voltage type:AC
Max. range to one side:8 m
Scan angle:360 °
Suitable for wall mounting:no
Min. duty cycle:10 s
Max. Duty cycle:20 min
Creep-under protection/rear field monitoring:no
Temperature:-20 to 40 °C
Adjustable response brightness:yes
Adjustable response sensitivity:yes
Max. presence area:201 m²
Max. frontal range:8 m
Max. Inrush current:8.7 A
Sensor type:passive infrared
Optimal installation height:4 m
Surface finish:matt
Surface:untreated
Material quality:thermoplastic
Detection field diameter on floor:16 m
Number of switching zones:1
Detection angle horizontal:0 to 360 °
Frequency:50 Hz
Halogen-free:yes
Constant light control:no
HVAC control:no
Forced shutdown:yes
Animal corridor:no
Networkable:yes
Staircase monitoring:no
Bypass switch:no
Suitable for wireless transmission:no
Remote control:yes
With Signal unit:no
Alarm function:no
Teach function for response brightness:yes
Transparent:no
With remote control:no
Suitable for C load:yes
With DALI interface:no
Extension input:yes
Forced switching on:yes
Suitable for ceiling mounting:yes
Connection type:Plug-in terminal
Antibacterial treatment:yes
Min. inrush current:5 A
Diameter:86 mm
Installation width:48 mm
Installation depth:36 mm
Installation length:48 mm
Installation diameter:48 mm
Min. depth of device box:36 mm

Characteristics

Bridging switchNo
With signal unitNo
Number of switching zones1
Response brightness5 to 2000 lx
Forced shutdownYes
Max. inrush current8.7 A
Scanning angle360 °
Forced switching onYes
Max. presence range201 m²
ManufacturerNIKO
HAN25456
GTIN3505100254560
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentYes
VersionPresence detector
Surface finishFrosted
Width86 mm
Diameter86 mm
Installation width48 mm
Installation diameter48 mm
Installation length48 mm
Installation depth36 mm
Detection field diameter on floor16m
Detection angle horizontal0 to 360 °
ColorWhite
Remote controllableYes
Frequency50Hz
Suitable for C-loadYes
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height86 mm
Constant light controlNo
Max. duty cycle20 min
Max. range frontal8m
Max. range to one side8m
Max. switching capacity2000W
Min. duty cycle10s
Min. depth of the device box36 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
SurfaceUntreated
Optimal mounting height4m
RAL number (similar)9010
IP protection)IP20
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-20 to 40 °C
Depth71 mm
Animal corridorNo
TransparentNo
Staircase monitoringNo
Creep protection/rear field monitoringNo
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
