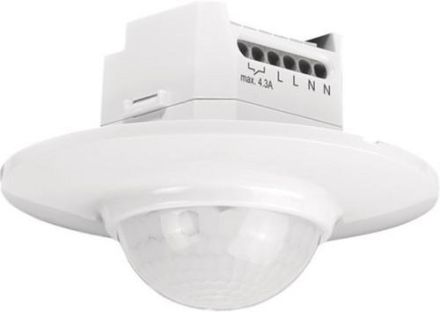

NIKO 25463 Swiss Garde 360 Presence Master PF RA, 16 m

In stock
SKU: 238153
€96.75
Into a basketIn the basketGo

Overview

Ideal for all standard applications in offices, meeting rooms, lounges, etc. Potential-free relay as a universal interface Master-slave circuit for inexpensive enlargement of the detection range Can be used as a single device or in combination with other Züblin master and slave devices, e.g. 25458, 25459, 25464, 25469 Can be programmed as a fully or semi-automatic device Manual control via external button possible Other colors on request

PropertyValue
Depth:71 mm
Width:105 mm
Height:105 mm
Version:Presence detector
Color:white
Nominal voltage:230 V
RAL number (similar):9010
Material:Plastic
Mounting type:Flush-mounted
Response brightness:5 to 2000 lx
Protection class (IP):IP20
Voltage type:AC
Scan angle:360 °
Suitable for wall mounting:no
Min. duty cycle:10 s
Max. Duty cycle:20 min
Creep-under protection/rear field monitoring:no
Temperature:-20 to 40 °C
Adjustable response brightness:yes
Adjustable response sensitivity:yes
Max. presence area:804 m²
Max. Inrush current:5 A
Sensor type:passive infrared
Optimal installation height:3 m
Surface finish:matt
Surface:untreated
Material quality:thermoplastic
Detection field diameter on floor:14 m
Number of switching zones:1
Detection angle horizontal:0 to 360 °
Frequency:50 Hz
Halogen-free:yes
Constant light control:no
HVAC control:no
Forced shutdown:yes
Animal corridor:no
Networkable:yes
Staircase monitoring:no
Remote control:yes
With signal unit:no
Alarm function:no
Teach function for response brightness:yes
Transparent:no
With remote control:no
Suitable for C load:yes
With DALI interface:no
Extension input:yes
Forced switching on:yes
Suitable for ceiling mounting:yes
Connection type:Plug-in terminal
Antibacterial treatment:yes
Min. Inrush current:5 A
Diameter:105 mm
Installation depth:36 mm
Installation length:48 mm
Installation diameter:48 mm
Min. depth of device box:36 mm

Characteristics

With signal unitNo
Number of switching zones1
Response brightness5 to 2000 lx
Forced shutdownYes
Max. inrush current5 A
Scanning angle360 °
Forced switching onYes
Max. presence range804 m²
ManufacturerNIKO
HAN25463
GTIN3505100254638
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentYes
VersionPresence detector
Surface finishFrosted
Width105 mm
Diameter105 mm
Installation diameter48 mm
Installation length48 mm
Installation depth36 mm
Detection field diameter on floor14m
Detection angle horizontal0 to 360 °
ColorWhite
Remote controllableYes
Frequency50Hz
Suitable for C-loadYes
Suitable for ceiling mountingYes
Suitable for wall mountingNo
HVAC controlNo
Halogen freeYes
Height105 mm
Constant light controlNo
Max. duty cycle20 min
Min. duty cycle10s
Min. depth of the device box36 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
SurfaceUntreated
Optimal mounting height3m
RAL number (similar)9010
IP protection)IP20
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-20 to 40 °C
Depth71 mm
Animal corridorNo
TransparentNo
Staircase monitoringNo
Creep protection/rear field monitoringNo
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
NIKO 25463 Swiss Garde 360 Presence Master PF RA, 16 m
