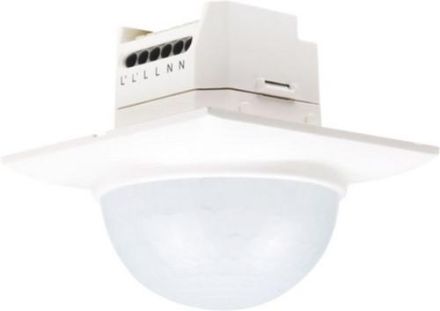

NIKO 25466 Swiss Garde 360 Presence Master, 30 m

In stock

SKU: 238155

Price on request

€70.63

€0

Overview

Ideal for open-plan offices and production halls Presence detector with power consumption of 0.25W Master-slave circuit for inexpensive enlargement of the detection area Can be used as a single device or in combination with other Züblin master and slave devices, e.g. 25458, 25459, 25464, 25469 Can be programmed as a fully or semi-automatic device Manual control via external button possible Other colors on request

Property	Value
Depth:	79 mm
Width:	95 mm
Height:	95 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. switching capacity:	2000 W
Voltage type:	AC
Max. range to one side:	15 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	706 m²
Max. frontal range:	15 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	5 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	30 m
Number of switching zones:	1
Detection angle horizontal:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	no
Suitable for wireless transmission:	no
Remote control:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial Treatment:	yes
Min. inrush current:	5 A
Diameter:	95 mm
Installation width:	48 mm
Installation depth:	36 mm
Installation length:	48 mm
Installation diameter:	48 mm
Min. depth of device box:	36 mm

Characteristics

With signal unitNo

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current10 A

Scanning angle360 °

Forced switching onYes

Max. presence range706 m²

Manufacturer

HAN25466

GTIN3505100254669

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionPresence detector

Surface finishFrosted

Width95 mm

Diameter95 mm

Installation width48 mm

Installation diameter48 mm

Installation length48 mm

Installation depth36 mm

Detection field diameter on floor30m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height95 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal15m

Max. range to one side15m

Max. switching capacity2000W

Min. duty cycle10s

Min. depth of the device box36 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height5 m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth79 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
