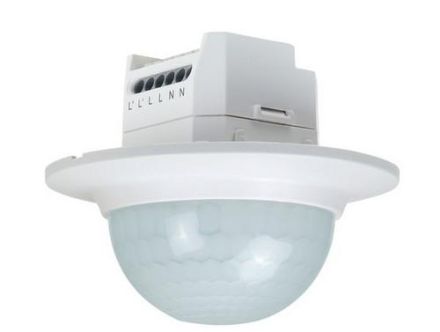

NIKO 25467 Swiss Garde 360 Presence Master RA, 30 m

In stock
SKU: 238156
€96.83
Into a basketIn the basketGo

Overview

for flush-mounted ceiling mounting, round cover, ideal for open-plan offices, classrooms, warehouses etc., zero-crossing switching to protect the relay, discreet and flat design, setting of all parameters LUX/SENS/time manually or via P-IR hand-held transmitter, short-pulse pause time adjustable to 20 or 60s via P-IR hand-held remote control, additional button input for manual switching on/off, time controller with integrated short-pulse function for controlling staircase lighting machines or gongs etc.

PropertyValue
Depth:86 mm
Width:105 mm
Height:105 mm
Version:Presence detector
Color:white
Nominal voltage:230 V
RAL number (similar):9010
Material:Plastic
Mounting type:Flush-mounted
Response brightness:5 to 2000 lx
Protection class (IP):IP20
Max. switching power:2000 W
Voltage type:AC
Max. range to one side:15 m
Scan angle:360 °
Suitable for wall mounting:no
Min. duty cycle:10 s
Max. Duty cycle:20 min
Creep-under protection/rear field monitoring:no
Temperature:-20 to 40 °C
Adjustable response brightness:yes
Adjustable response sensitivity:yes
Max. presence area:706 m²
Max. frontal range:15 m
Max. Inrush current:10 A
Sensor type:passive infrared
Optimal installation height:5 m
Surface finish:matt
Surface:untreated
Material quality:thermoplastic
Detection field diameter on floor:30 m
Number of switching zones:1
Detection angle horizontal:0 to 360 °
Frequency:50 Hz
Halogen-free:yes
Constant light control:no
HVAC control:no
Forced shutdown:yes
Animal corridor:no
Networkable:yes
Staircase monitoring:no
Suitable for wireless transmission:no
Remote control:yes
With signal unit:no
Alarm function:no
Teach function for response brightness:yes
Transparent:no
With remote control:no
Suitable for C load:yes
With DALI interface:no
Extension input:yes
Forced switching on:yes
Suitable for ceiling mounting:yes
Connection type:Plug-in terminal
Antibacterial Treatment:yes
Min. inrush current:5 A
Diameter:105 mm
Installation width:48 mm
Installation depth:36 mm
Installation length:48 mm
Installation diameter:48 mm
Min. depth of device box:36 mm

Characteristics

With signal unitNo
Number of switching zones1
Response brightness5 to 2000 lx
Forced shutdownYes
Max. inrush current10 A
Scanning angle360 °
Forced switching onYes
Max. presence range706 m²
ManufacturerNIKO
HAN25467
GTIN3505100254676
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentYes
VersionPresence detector
Surface finishFrosted
Width105 mm
Diameter105 mm
Installation width48 mm
Installation diameter48 mm
Installation length48 mm
Installation depth36 mm
Detection field diameter on floor30m
Detection angle horizontal0 to 360 °
ColorWhite
Remote controllableYes
Frequency50Hz
Suitable for C-loadYes
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height105 mm
Constant light controlNo
Max. duty cycle20 min
Max. range frontal15m
Max. range to one side15m
Max. switching capacity2000W
Min. duty cycle10s
Min. depth of the device box36 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
SurfaceUntreated
Optimal mounting height5 m
RAL number (similar)9010
IP protection)IP20
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-20 to 40 °C
Depth86 mm
Animal corridorNo
TransparentNo
Staircase monitoringNo
Creep protection/rear field monitoringNo
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
