NIKO 25469 Swiss Garde 360 Presence Slave RA, 30 m

NIKO 25469 Swiss Garde 360 Presence Slave RA, 30 m

In stock

SKU: 238158

Price on request

€87.12

€0

Overview

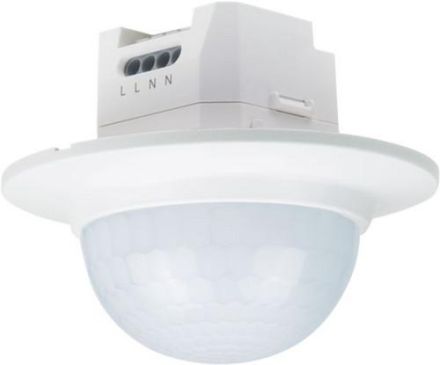

UP presence detector for ceiling mounting, Züblin Swiss Garde 360 presence slave RA (round cover) 30m, 3 PIR sensors with 360° detection range, range approx. 7m presence, approx. 26m at 3m height, mounting height approx. 2-8 meters, IP20 indoor installation, class II, 1-channel to master series of the same design, not remote controllable

Property	Value
Depth:	86 mm
Width:	105 mm
Height:	105 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Protection class (IP):	IP20
Voltage type:	AC
Max. range to one side:	13 m
Scan angle:	360 °
Suitable for wall mounting:	no
Creep-by protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	yes
Max. presence area:	706 m²
Max. Frontal range:	13 m
Sensor type:	passive infrared
Optimal installation height:	5 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	26 m
Number of switching zones:	1
Detection angle horizontal:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Suitable for wireless transmission:	no
Remote control:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Diameter:	105 mm
Installation width:	48 mm
Installation depth:	36 mm
Installation length:	48 mm
Installation diameter:	48 mm
Min. depth of device box:	36 mm

Characteristics

With signal unitNo

Number of switching zones1

Forced shutdownYes

Scanning angle360 °

Forced switching onYes

Max. presence range706 m²

Manufacturer

HAN25469

GTIN3505100254690

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableNo

Antibacterial treatmentYes

VersionPresence detector

Surface finishFrosted

Width105 mm

Diameter105 mm

Installation width48 mm

Installation diameter48 mm

Installation length48 mm

Installation depth36 mm

Detection field diameter on floor26m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height105 mm

Constant light controlNo

Max. range frontal13m

Max. range to one side13m

Min. depth of the device box36 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height5 m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth86 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
