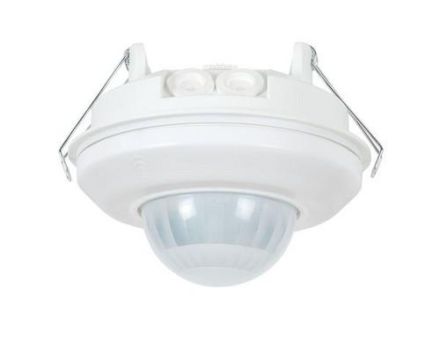

NIKO 25474 Swiss Garde 360 Dualtec Master EB presence detector

NIKO 25474 Swiss Garde 360 Dualtec Master EB presence detector

In stock

SKU: 537303

Price on request

€103.75

€0

Overview

Master presence detector with dual technology (HF and PIR). Detection behavior can be selected using five different, logical combinations of PIR and HF. The innovative combination of HF and PIR technology allows the sensitivity to be optimally adapted to the respective situation. External switch input, full and semi-automatic mode, potential-free switching output. Area extension with a maximum of 10 secondary detectors. Color: white Compatible secondary detectors: 25459, 25469

Property	Value
Depth:	110 mm
Width:	130 mm
Height:	130 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP54
Max. switching power:	2300 W
Voltage type:	AC
Max. range to one side:	20 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	1256 m²
Max. frontal range:	20 m
Max. Inrush current:	10 A
Sensor type:	passive infrared/ultrasonic (dual)
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	40 m
Number of switching zones:	1
Detection angle horizontal:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Remote control:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Min. Inrush current:	5 A
Diameter:	130 mm
Installation width:	125 mm
Installation depth:	50 mm
Installation length:	50 mm
Installation diameter:	125 mm
Min. depth of device box:	50 mm

Characteristics

With signal unitNo

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current10 A

Scanning angle360 °

Forced switching onYes

Max. presence range1256 m²

HABSwiss Garde 360 Dualtec Master EB

Manufacturer

HAN25474

GTIN3505100254744

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionPresence detector

Surface finishFrosted

Width130 mm

Diameter130 mm

Installation width125 mm

Installation diameter125 mm

Installation length50 mm

Installation depth50 mm

Detection field diameter on floor40m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

HVAC controlNo

Halogen freeYes

Height130 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal20m

Max. range to one side20m

Max. switching capacity2300W

Min. duty cycle10s

Min. depth of the device box50 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP54

Sensor typePassive infrared/ultrasound (dual)

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth110 mm

Animal corridorNo

TransparentNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
