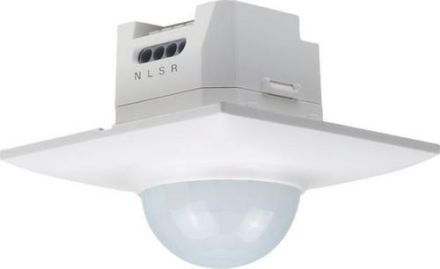

NIKO 26003 Swiss Garde 360 Presence DALI Master, 16 m

NIKO 26003 Swiss Garde 360 Presence DALI Master, 16 m

In stock

SKU: 238168

Price on request

€112.45

€0

Overview

Ideal for all DALI broadcast applications in offices, meeting rooms, lounges, basements, etc. Can be used as a single device or in combination with other Züblin DALI master and slave devices, e.g. 25458, 25459, 25464, 25469 Constant light control and standby function Integrated DALI power supply for max. 100mA load Other colors on request

Property	Value
Depth:	71 mm
Width:	88 mm
Height:	88 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Voltage type:	AC
Max. range to one side:	8 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	no
Temperature:	0 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. presence range:	201 m²
Max. Frontal range:	8 m
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	16 m
Control current:	100 mA
Number of switching zones:	1
Detection angle horizontal:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Networkable:	yes
Suitable for wireless transmission:	yes
Remote control:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	yes
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Diameter:	88 mm
Installation width:	48 mm
Installation depth:	36 mm
Installation length:	48 mm
Installation diameter:	48 mm
Min. depth of the device box:	36 mm

Characteristics

Number of switching zones1

Response brightness5 to 2000 lx

Scanning angle360 °

Forced switching onYes

Max. presence range201 m²

Manufacturer

HAN26003

GTIN3505100260035

Dimming function with dimming insertYes

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentYes

VersionPresence detector

Surface finishFrosted

Width88 mm

Diameter88 mm

Installation width48 mm

Installation diameter48 mm

Installation length48 mm

Installation depth36 mm

Detection field diameter on floor16m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionYes

HVAC controlNo

Halogen freeYes

Height88 mm

Constant light controlYes

Max. duty cycle30 min

Max. range frontal8m

Max. range to one side8m

Min. duty cycle10s

Min. depth of the device box36 mm

With DALI interfaceYes

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature0 to 45 °C

Depth71 mm

TransparentNo

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
