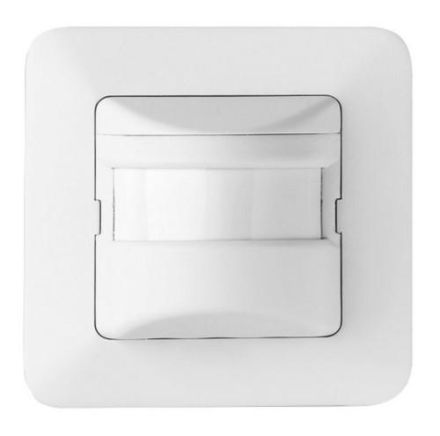

NIKO 3220 motion detector Infra Garde 180 UP, 8 m white

NIKO 3220 motion detector Infra Garde 180 UP, 8 m white

In stock

SKU: 238080

Price on request

€45.87

€0

Overview

Inexpensive flush-mounted wall detector with manual switch on/off/automatic, tolerant when detecting small animals, technical data: nominal voltage: 230 V, switching capacity: 1000 W, detection range: 180°, range: approx. 8 m frontally and approx. 4 m laterally, installation height: approx. 1 - 1.5 m, twilight controller: 5 - 1000 lx, time controller: short pulse (approx. 1 s), approx. 7 s to 12 min, protection class: IP20 indoor installation, class II, temperature range: -20 to +40 °C, dimensions: 81 x 81 x 30 mm (visible dimensions)

Property	Value
Depth:	67 mm
Width:	81 mm
Height:	81 mm
Design:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	flush-mounted
Response brightness:	5 to 1000 lx
Protection class (IP):	IP20
Max. switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	4 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Min. duty cycle:	7 s
Max. Duty cycle:	12 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	50 m²
Max. frontal range:	4 m
Max. Inrush current:	4.35 A
Sensor type:	passive infrared
Optimal installation height:	1.2 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	1
Detection angle horizontal:	0 to 180 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Remote control:	no
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Min. Inrush current:	1.25 A
Diameter:	81 mm
Installation width:	50 mm
Installation depth:	37 mm
Installation length:	50 mm
Installation diameter:	50 mm
Min. depth of device box:	37 mm

Characteristics

Number of switching zones1

Response brightness5 to 1000 lx

Forced shutdownYes

Max. inrush current4.35 A

Scanning angle180 °

Forced switching onYes

Max. presence range50 m²

Manufacturer

HAN3220

GTIN3505100003151

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionMotion detector

Surface finishFrosted

Width81 mm

Diameter81 mm

Installation width50 mm

Installation diameter50 mm

Installation length50 mm

Installation depth37 mm

Detection field diameter on floor8m

Detection angle horizontal0 to 180 °

Color

Remote controllableNo

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wall mountingYes

HVAC controlNo

Halogen freeYes

Height81 mm

Constant light controlNo

Max. duty cycle12 min

Max. range frontal4m

Max. range to one side4m

Max. switching capacity1000W

Min. duty cycle7s

Min. depth of the device box37 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height1.2m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth67 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
