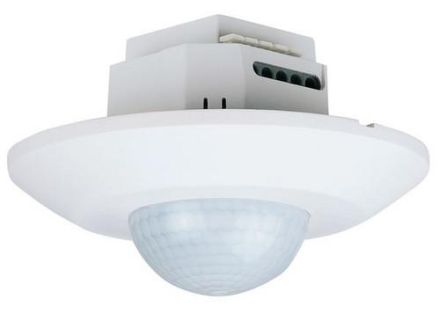

NIKO 3322 Infra Garde 360 UP Acoustic

In stock

SKU: 238115

Price on request

€88.84

€0

Overview

Motion detector with integrated acoustic sensor, ideal in confusing and angled rooms, also detects behind partition walls etc., Technical data: Nominal voltage: 230 V/50Hz, Switching capacity: 1000 W/5A (cos f 1.0), 250 VA/1.25 A (cos phi 0.5), Twilight controller: 5 - 1000lx, Microphone: adjustable 50 dB to 70 dB, Time controller: short pulse (approx. 1 s), approx. 30 s to 30 m, Class II, Temperature range: -20 to +40°C, Dimensions: 105 x 37 mm (visible dimension)

Property	Value
Depth:	68 mm
Width:	105 mm
Height:	68 mm
Version:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	flush-mounted
Response brightness:	5 to 1000 lx
Protection class (IP):	IP20
Max. switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	12 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	30 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	452 m²
Max. frontal range:	12 m
Max. Inrush current:	4.35 A
Sensor type:	passive infrared/ultrasonic (dual)
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	24 m
Number of switching zones:	1
Detection angle horizontal:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Suitable for wireless transmission:	no
Remote control:	no
Alarm function:	no
Teach function for response brightness:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	yes
Min. inrush current:	1.25 A
Diameter:	105 mm
Installation width:	48 mm
Installation depth:	31 mm
Installation length:	48 mm
Installation diameter:	48 mm
Min. depth of device box:	31 mm

Characteristics

Number of switching zones1

Response brightness5 to 1000 lx

Forced shutdownNo

Max. inrush current4.35 A

Scanning angle360 °

Forced switching onNo

Max. presence range452 m²

Manufacturer

HAN3322

GTIN3505100033226

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionMotion detector

Surface finishFrosted

Width105 mm

Diameter105 mm

Installation width48 mm

Installation diameter48 mm

Installation length48 mm

Installation depth31 mm

Detection field diameter on floor24m

Detection angle horizontal0 to 360 °

Color

Remote controllableNo

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height68 mm

Constant light controlNo

Max. duty cycle20 min

Max. range frontal12m

Max. range to one side12m

Max. switching capacity1000W

Min. duty cycle30s

Min. depth of the device box31 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared/ultrasound (dual)

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Depth68 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
