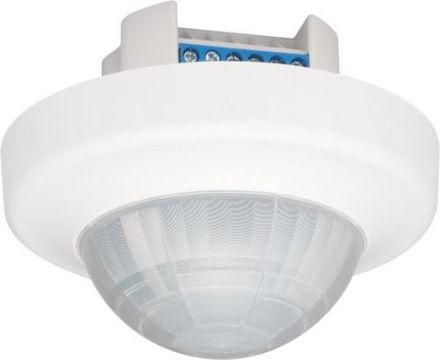

NIKO 41702 Swiss Garde 360 Presence Slave Duo, 24m

NIKO 41702 Swiss Garde 360 Presence Slave Duo, 24m

In stock

SKU: 238173

Price on request

€86.96

€0

Overview

UP presence detector for ceiling mounting / Zueblin Swiss Garde 360 presence slave duo 24m / Operation in master/slave configuration with up to 10 slave devices / 3 PIR sensors with 360° detection range (3x 120°) / Range max. 6m presence, approx. 24m at 3m height / Installation height 2-3.5 meters / IP54 increased splash protection

Property	Value
Depth:	73.4 mm
Width:	100 mm
Height:	100 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	20 to 1000 lx
Protection class (IP):	IP54
Voltage type:	AC
Max. range to one side:	12 m
Scan angle:	360 °
Suitable for wall mounting:	no
Creep-by protection/rear field monitoring:	no
Temperature:	-5 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Presence area:	300 m²
Max. Frontal range:	12 m
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	other
Material quality:	thermoplastic
Detection field diameter on floor:	24 m
Detection angle horizontal:	0 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	yes
Suitable for C load:	no
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	yes
Diameter:	100 mm
Installation width:	60 mm
Installation depth:	27 mm
Installation length:	60 mm
Installation diameter:	60 mm
Min. depth of device box:	27 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness20 to 1000 lx

Forced shutdownYes

Scanning angle360 °

Forced switching onYes

Max. presence range300 m²

Manufacturer

HAN41702

GTIN3505100417026

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionPresence detector

Surface finishFrosted

Width100 mm

Diameter100 mm

Installation width60 mm

Installation diameter60 mm

Installation length60 mm

Installation depth27 mm

Detection field diameter on floor24m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height100 mm

Constant light controlNo

Max. range frontal12m

Max. range to one side12m

Min. depth of the device box27 mm

With DALI interfaceNo

With remoteYes

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceOther

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-5 to 50 °C

Depth73.4 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
