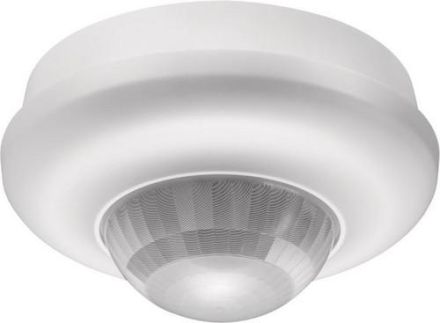

NIKO 41781 Swiss Garde 360 DALI Master EnOcean AP presence detector

NIKO 41781 Swiss Garde 360 DALI Master EnOcean AP presence detector

In stock

SKU: 537296

Price on request

€263.10

€0

Overview

Master presence detector with increased range for DALI systems (addressable). Constant light control for up to 3 zones, 2 secondary zones (ON/OFF), multifunctional potential-free relay. Fastest commissioning via app or remote control, no DALI programming device required. Can be combined with up to 32 EnOcean single/double switches from common switch manufacturers. Range extension with max. 10 secondary detectors. Secondary detectors are automatically recognized. Color: white Compatible secondary detectors: 41752, 41753, 41763

Property	Value
Depth:	64 mm
Width:	117 mm
Height:	117 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	100 to 2000 lx
Protection class (IP):	IP54
Max. switching power:	2300 W
Voltage type:	AC
Max. range to one side:	12 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	300 s
Max. Duty cycle:	9999 min
Creep-under protection/rear field monitoring:	no
Temperature:	-5 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	453 m²
Max. frontal range:	12 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	24 m
Control current:	200 mA
Number of switching zones:	3
Switch-off delay:	9999 s
Horizontal detection angle:	360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	yes
Remote control:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	yes
Transparent:	no
With remote control:	yes
Suitable for C load:	yes
With DALI interface:	yes
Extension input:	yes
Suitable for ceiling mounting:	yes
Connection type:	screw terminal
Antibacterial treatment:	no
Impact resistance:	IK02
Min. inrush current:	0.000001 A
Diameter:	117 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones3

Response brightness100 to 2000 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle360 °

Max. presence range453 m²

HABSwiss Garde 360 DALI Master EnOcean AP

Manufacturer

HAN41781

GTIN3505100417811

Dimming function with dimming insertYes

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width117 mm

Diameter117 mm

Detection field diameter on floor24m

Detection angle horizontal360°

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionYes

HVAC controlNo

Halogen freeYes

Height117 mm

Constant light controlYes

Max. duty cycle9999mins

Max. range frontal12m

Max. range to one side12m

Max. switching capacity2300W

Min. duty cycle300s

With DALI interfaceYes

With remoteYes

Mounting typeSurface-mounted

Extension inputYes

Nominal voltage230V

Optimal mounting height3m

RAL number (similar)9010

Impact resistanceIK02

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-5 to 50 °C

Depth64 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
