Norka 3454804421 Magnon PL-1000-01 m1200 4000K IP65 PMMA LED moisture-proof light bar

Norka 3454804421 Magnon PL-1000-01 m1200 4000K IP65 PMMA LED moisture-proof light bar

In stock

SKU: 634452

Price on request

€166.81

€0

Overview

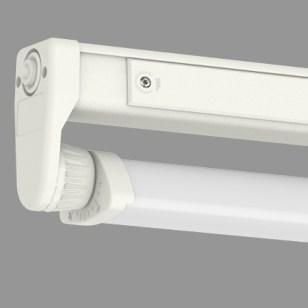

Ceiling and wall-mounted light made of plastic with LEDs. Light housing made of weather-resistant, glass-fiber-reinforced plastic. Lamp and device compartment thermally separated. Short sealing system consisting of age-resistant, dimensionally stable silicone/synthetic rubber. Protective tube reflector with internal aluminum reflector (MIRO-SILVER®) that can be swiveled 2 x 90°. The protective tube reflector can be continuously locked. Built-in operating device. Ready for connection via two side connection covers, two M20 cable membranes on the front and through-wiring. Installation using two plastic mounting clips, variable mounting distance.

Property	Value
System power:	32 W
Luminous flux:	4540 lm
Number of LM:	1
Length:	1255 mm
Width:	80 mm
Height/depth:	123 mm
Protection rating (IP):	IP65
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	yes
Nominal voltage:	230 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK04
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC/DC
With Motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Temperature:	-25 to 35 °C
Connection type:	other
With operating device:	yes
Cover material:	opal plastic
Light distributor:	reflector
Without Dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	yes
Suitable for pendant suspension:	no
Suitable for Surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	high-gloss
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	29 W
Luminaire luminous efficacy:	141 lm/W
Power factor:	0.9
Type of wiring:	with through wiring
Conductor cross-section:	1.5 mm²
Surface protection Housing:	untreated
Nominal current:	139 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance for an average service life of 50,000 hours at an ambient temperature of 25 °C:	80 %
Failure rate for an average service life of 35,000 hours at an ambient temperature of 25 °C (tq):	3.5 %
Failure rate for an average service life of 35,000 hours at an ambient temperature of 25 °C Service life of 50,000 hours at 25 °C ambient temperature (tq):	5 %
Max. number of luminaires circuit breaker B16:	16
Max. Number of lights Circuit breaker C16:	26
Integrated emergency power supply:	no
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG1
Glare limitation (UGR):	22.7
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

HABMagnon PL-1000-01 m1200 4000K IP65

Manufacturer

HAN3454804421

GTIN4050018072045

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringWith through wiring

Execution of the gridHigh gloss

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)22.7

Width80 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power29 W

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth123 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes

Luminaire luminous efficacy141lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux4540lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.80 %

Light distributorReflector

Light distributionSymmetrical

Length1255 mm

Max. number of luminaires Circuit breaker B1616

Max. number of luminaires Circuit breaker C1626

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230 to 240 V

Rated current139mA

Emergency power supply integratedNo

Surface protection housingUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Impact resistanceIK04

IP protection)IP65

Protection classII

Voltage typeAC/DC

System performance32W

Temperature-25 to 35 °C

Cover materialPlastic opal

Housing materialPlastic
