Norka 4336802421 Erfurt Extreme m1500 5050lm narrow beam LED waterproof luminaire

Norka 4336802421 Erfurt Extreme m1500 5050lm narrow beam LED waterproof luminaire

In stock

SKU: 634522

Price on request

€453.28

€0

Overview

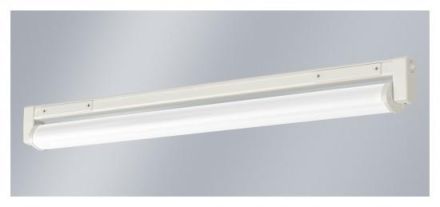

Ceiling and wall-mounted light made of plastic with LEDs. Light housing made of weather-resistant, glass-fiber-reinforced plastic. Lamp and device compartment thermally separated. Short sealing system consisting of age-resistant, dimensionally stable silicone/synthetic rubber. Pivoting protective tube reflector with internal aluminum reflector (MIRO-SILVER®). The protective tube reflector can be locked in 10° increments. Built-in operating device. Ready for connection via connection cover, two M20 cable membranes on the front and through-wiring. Mounting using two stainless steel mounting brackets, variable mounting distance.

Property	Value
System power:	35 W
Luminous flux:	4830 lm
Number of LM:	1
Length:	1551 mm
Width:	107 mm
Height/depth:	140 mm
Protection rating (IP):	IP65
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	yes
Nominal voltage:	230 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK04
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC/DC
With Motion detector:	no
Beam angle:	narrow beam 11 - 20°
With light source:	yes
Light source:	LED replaceable
Temperature:	-40 to 65 °C
Connection type:	Plug terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	Reflector
Without Dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	yes
Suitable for pendant suspension:	yes
Suitable for Surface mounting:	yes
Suitable for emergency lighting:	yes
Design of the grid:	high-gloss
Covering of the lamp with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	32 W
Luminaire luminous efficacy:	138 lm/W
Power factor:	0.98
Type of wiring:	with Through wiring
Number of poles:	2
Conductor cross-section:	1.5 mm²
Surface protection of housing:	untreated
Nominal current:	152 mA
Replaceable control gear:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance at an average service life of 50,000 hours at an ambient temperature of 25 °C:	80 %
Luminous flux maintenance at an average service life of 50,000 hours at an ambient temperature of 25 °C Service life 75,000 hours at 25 °C ambient temp.:	80 %
Failure rate for average service life of 35,000 hours at 25 °C ambient temp. (tq):	3.5 %
Failure rate for average service life of 50,000 hours at 25 °C ambient temp. (tq):	5 %
Failure rate for average service life of 75,000 hours at 25 °C ambient temp. (tq):	7.5 %
Integrated emergency power supply:	no
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG1
Glare limitation (UGR):	18.8
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

HABErfurt Extreme m1500 5050lm narrow beam

Manufacturer

HAN4336802421

GTIN4050018872386

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringWith through wiring

Execution of the gridHigh gloss

Beam angleNarrow beam 11 - 20°

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)18.8

Width107 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power32W

Suitable for light strip configurationYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth140 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.98

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes

Luminaire luminous efficacy138lm/W

LampsLED replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux4830lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.80 %

Light distributorReflector

Light distributionSymmetrical

Length1551 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230 to 240 V

Rated current152mA

Emergency power supply integratedNo

Surface protection housingUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

Impact resistanceIK04

IP protection)IP65

Protection classII

Voltage typeAC/DC

System performance35W

Temperature-40 to 65 °C

Cover materialPlastic opal

Housing materialPlastic
