Norka 6566800401 BELFAST m1500 PC opal white room-standing LED ceiling light

Norka 6566800401 BELFAST m1500 PC opal white room-standing LED ceiling light

In stock

SKU: 636095

Price on request

€900.85

€0

Overview

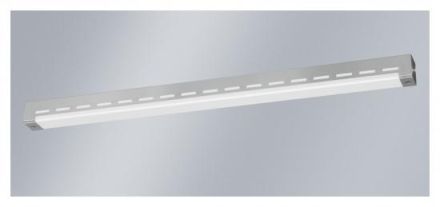

Extremely impact-resistant anti-vandal light made of stainless steel with LEDs. Vandal-proof up to 150 joules/IK 10+. Lamp housing made of stainless steel, ground, protection class IP 44. With built-in plastic light, protection class IP 65. Sealing system consisting of age-resistant, dimensionally stable silicone/synthetic rubber. Angular, 4 mm thick lamp cover with internal aluminum reflector. Built-in operating device. Ready for connection via two rear, concealed M20 cable entries. Installation via two rear, concealed mounting holes. The lamp cover is attached using two stainless steel hexagon socket screw plugs.

Property	Value
System power:	47 W
Luminous flux:	3460 lm
Number of LM:	1
Length:	1540 mm
Width:	75 mm
Height/depth:	75 mm
Protection rating (IP):	IP44
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	yes
Nominal voltage:	230 to 240 V
Housing color:	stainless steel
Housing material:	stainless steel
Color temperature:	4000 K
Impact resistance:	> IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC/DC
With Motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Temperature:	-25 to 35 °C
Connection type:	other
With operating device:	yes
Cover material:	opal plastic
Light distributor:	reflector
Without Dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	yes
Suitable for pendant suspension:	no
Suitable for Surface mounting:	yes
Suitable for emergency lighting:	yes
Design of the grid:	high-gloss
Covering of the lamp with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	44 W
Luminaire luminous efficacy:	72 lm/W
Power factor:	0.98
Type of wiring:	with through wiring
Conductor cross-section:	1.5 mm²
Surface protection Housing:	untreated
Nominal current:	204 mA
Replaceable operating device:	no
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance at average service life of 50,000 h at 25 °C ambient temp.:	80 %
Luminous flux maintenance at average service life of 75,000 h at 25 °C ambient temp.:	80 %
Failure rate at average service life of 75,000 h at 25 °C ambient temp.:	80 % Service life of 35,000 hours at 25 °C ambient temp. (tq):	3.5 %
Failure rate for average service life of 50,000 hours at 25 °C ambient temp. (tq):	5 %
Failure rate for average service life of 75,000 hours at 25 °C ambient temp. (tq):	7.5 %
Max. number of luminaires circuit breaker B16:	16
Max. Number of lights Circuit breaker C16:	26
Integrated emergency power supply:	no
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG1
Glare limitation (UGR):	23
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

HABBELFAST m1500 PC opal white room st.

Manufacturer

HAN6566800401

GTIN4050018999717

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringWith through wiring

Execution of the gridHigh gloss

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)23

Width75 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power44W

Suitable for light strip configurationYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Housing colorStainless steel

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth75 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.98

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes

Luminaire luminous efficacy72lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux3460lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.80 %

Light distributorReflector

Light distributionSymmetrical

Length1540 mm

Max. number of luminaires Circuit breaker B1616

Max. number of luminaires Circuit breaker C1626

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230 to 240 V

Rated current204mA

Emergency power supply integratedNo

Surface protection housingUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

IP protection)IP44

Protection classII

Voltage typeAC/DC

System performance47W

Temperature-25 to 35 °C

Cover materialPlastic opal

Housing materialStainless steel
